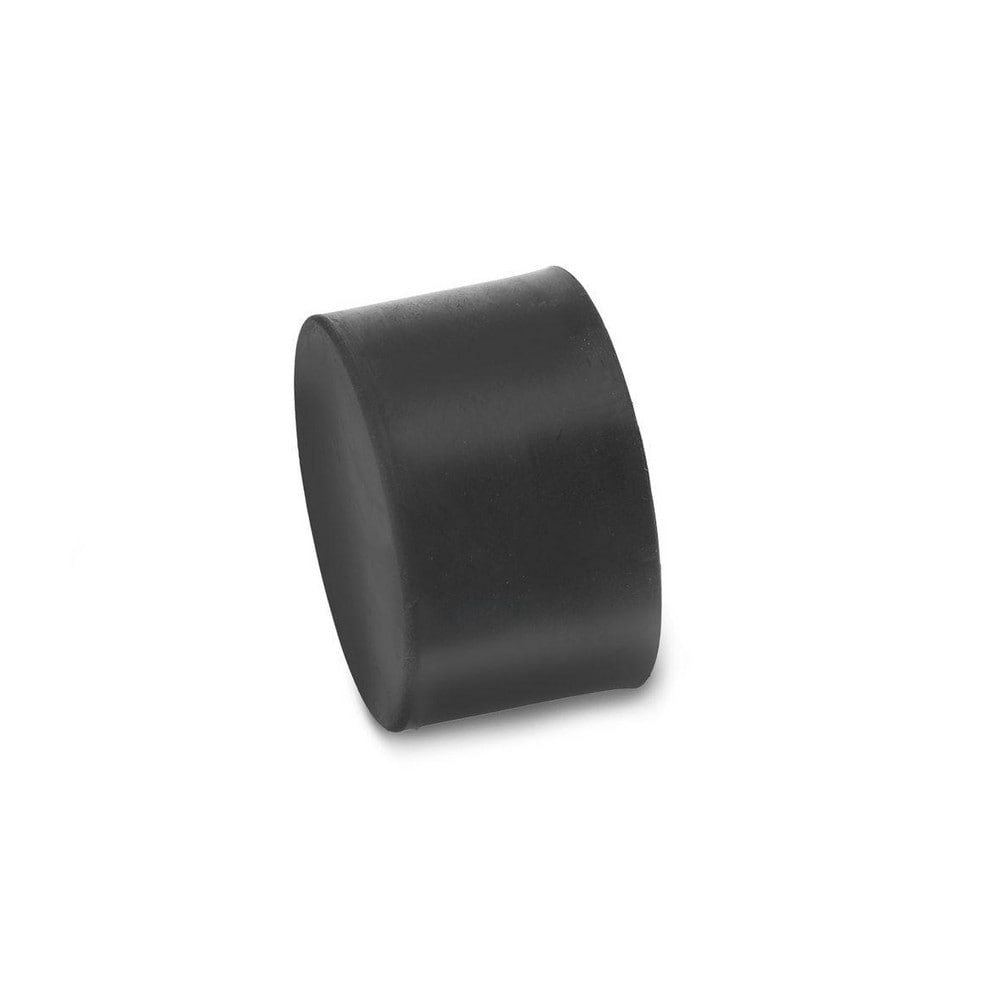

GN352-8-13-M3-E-70 RUBBER BUMPER
Item #: 06806830
Brand: J.W. Winco
Model #: 352-8-13-M3-E-70
Product Specifications
| Isolator Type | Standard Deflection |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 110.00 |
| Top Diameter | 8.00 |
| Bottom Diameter | 8 |
| Thread Size | M3 |
| Overall Width | 8 in |
| Overall Diameter | 8 mm |
| Deflection | 0.1300 |
| Hardness Rating | Shore 70A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 3.0000 |
| Thread Pitch | 0.5 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 8 mm |
| UNSPSC Code | 23153130 |
