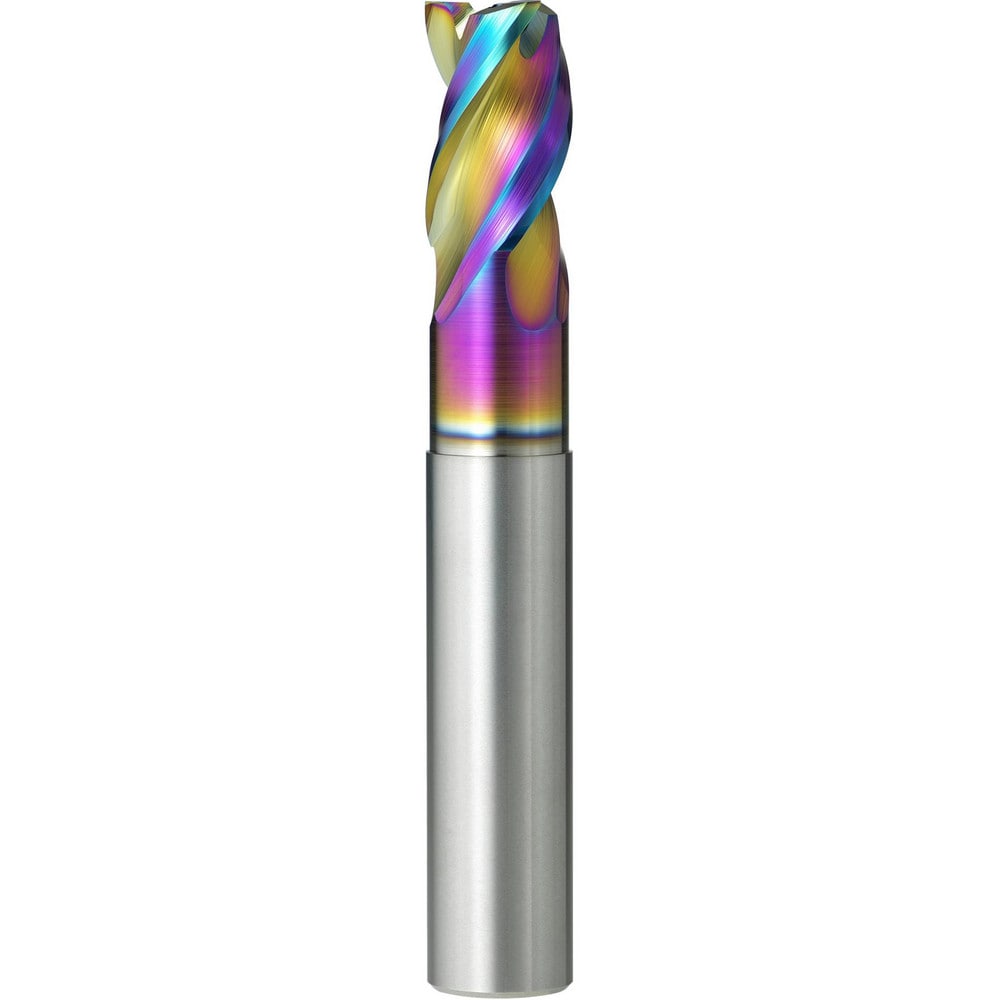

Square End Mill: 20.00 mm Dia, 30.00 mm LOC, 3 Flute, Solid Carbide
Item #: 09284522
Brand: Mitsubishi
Model #: 10647165
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.1811 |
| Length of Cut (mm) | 30.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Single Or Double End | Single |
| Coating/Finish Family | DLC |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 37.5 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | DLC |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Short |
| Neck Length (Decimal Inch) | 2.1654 |
| Neck Length (mm) | 55.00 |
| Neck Diameter (Decimal Inch) | 0.7087 |
| Neck Diameter (mm) | 18.00 |
| Mill Diameter Tolerance | 0; -0.030 |
| Shank Diameter Tolerance | h6 |
| Series | DLC Endmill |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
