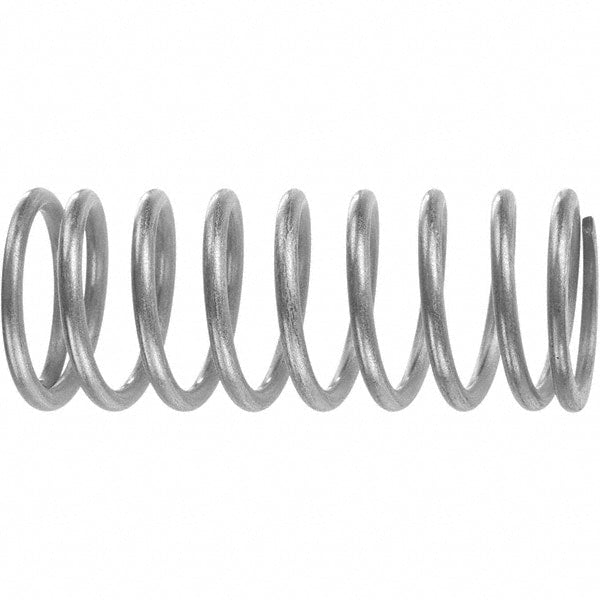

Precision Compression Spring: 0.9400" OD, 5-1/2" Free Length
Item #: 16898686
Brand: Associated Spring Raymond
Model #: C0940-177-5500M
Product Specifications
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.9400 |
| Free Length (Inch) | 5-1/2 |
| Spring Rate | 154 |
| End Type | Ground; Square |
| Maximum Work Load (Lb.) | 143.50 |
| Material | Carbon Steel |
| Finish | Plain |
| Wire Size (Decimal Inch) | 0.1770 |
| Hole Diameter (Decimal Inch) | 0.5900 |
| Spring Type | Precision |
| Solid Height (Decimal Inch) | 4.2100 |
| Free Length (Decimal Inch) | 5.5000 |
| Color | Silver |
| Standards | AMS 5112; ASTM A228 |
| UNSPSC Code | 31161904 |
