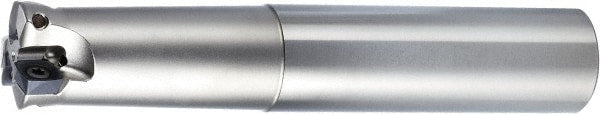

Indexable High-Feed End Mill: 1.25" Weldon Shank
Item #: 55702443
Brand: OSG
Model #: 7800934
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 4.7240 |
| Toolholder Style | PHC |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Compatible Insert Style | SDMT09? |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 7.0040 |
| Projection (Decimal Inch) | 7.0040 |
| Weldon Flat | Yes |
| Lead Angle | 10 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 4.7240 |
| Toolholder Style | PHC |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Compatible Insert Style | SDMT09? |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 7.0040 |
| Projection (Decimal Inch) | 7.0040 |
| Weldon Flat | Yes |
| Lead Angle | 10 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| MSC Part # | 55702443 |
| Mfr Part # | 7800934 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
