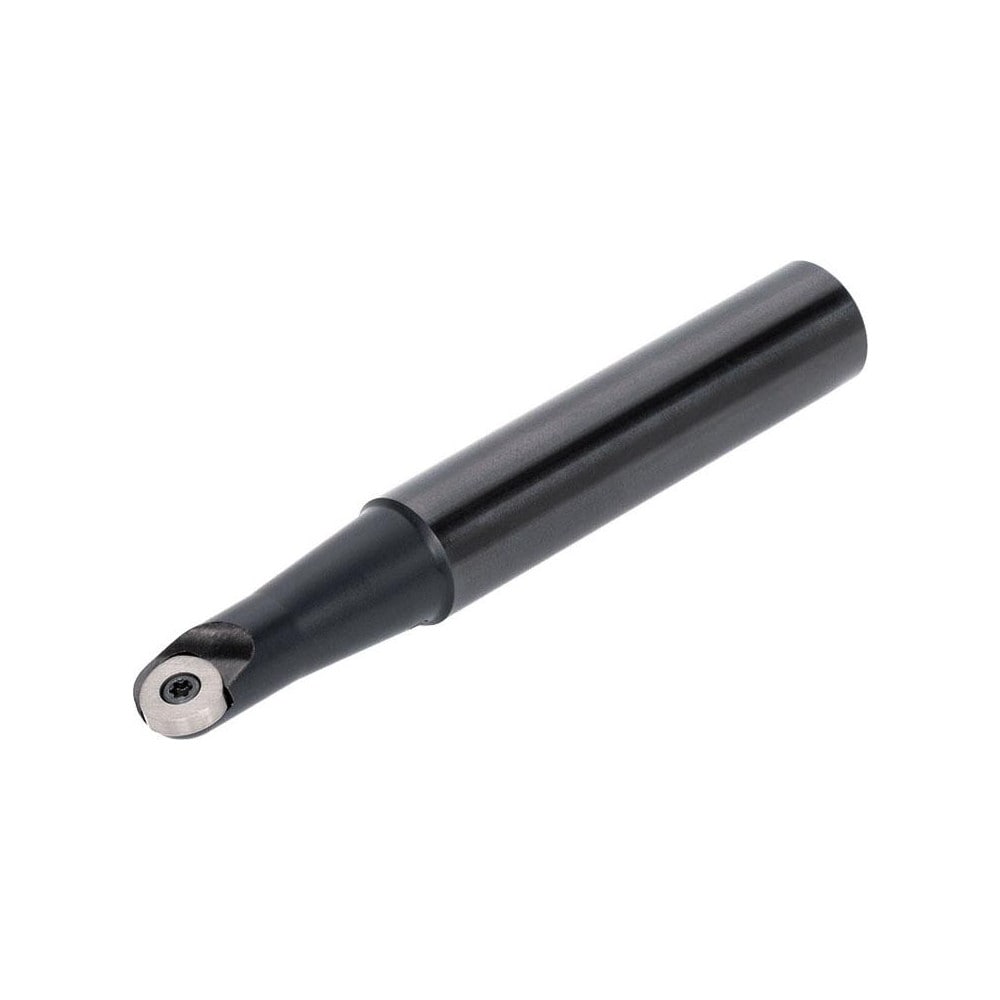

Indexable Ball Nose End Mills; Cutting Diameter (Decimal Inch): 0.7874; Cutting Diameter (mm): 20.00; Tool Material: Steel; Maximum Depth of Cut (mm): 10.00; Shank Type: Cylindrical
Item #: 62999628
Brand: Tungaloy
Model #: 6807560
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Cutting Diameter (mm) | 20.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (mm) | 10.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZNCA |
| Compatible Insert Size Code | 2004 |
| Toolholder Style | TBN1000 |
| Tapered Neck | Yes |
| Overall Length (mm) | 160.0000 |
| Series | TBN1000 |
| Head Length (mm) | 35.00 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | TBN1200S |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 1 |
| Number Of Inserts | 1 |
| Complete Insert Compatibility | ZNCA |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Cutting Diameter (mm) | 20.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (mm) | 10.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZNCA |
| Compatible Insert Size Code | 2004 |
| Toolholder Style | TBN1000 |
| Tapered Neck | Yes |
| Overall Length (mm) | 160.0000 |
| Series | TBN1000 |
| Head Length (mm) | 35.00 |
| Tool Application | Profile Milling |
| Manufacturers Catalog Number | TBN1200S |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 1 |
| Number Of Inserts | 1 |
| Complete Insert Compatibility | ZNCA |
| UNSPSC Code | 27112803 |
| MSC Part # | 62999628 |
| Mfr Part # | 6807560 |
| Country of Origin Country of Origin is subject to change | Japan |
