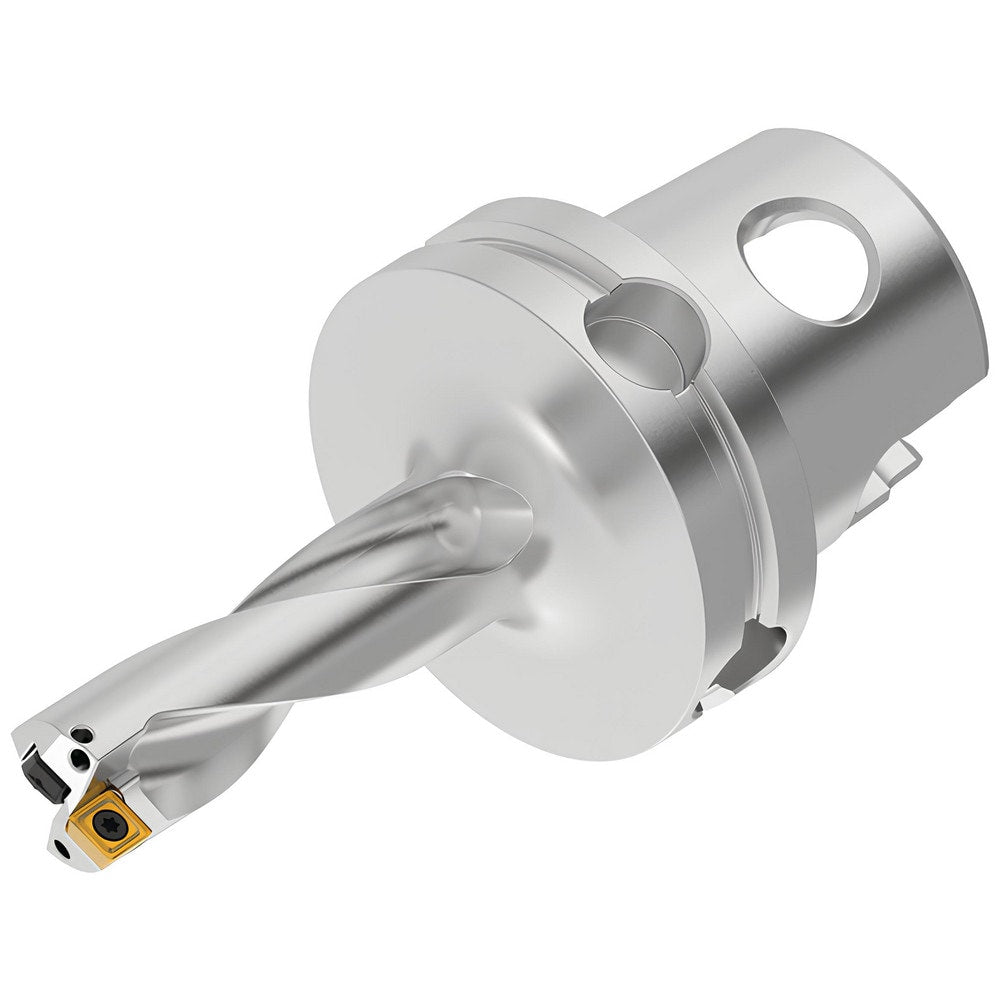

Indexable Insert Drill: DFPR0563R3KM40, 14.80 mm Max Dia, 42.90 mm Max Depth, 3xD, 40.00 mm Shank Dia
Item #: 04973780
Brand: Kennametal
Model #: 7034240
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 14.80 |
| Maximum Drill Diameter (Decimal Inch) | 0.5827 |
| Maximum Drill Depth (Decimal Inch) | 1.6890 |
| Maximum Drill Depth (mm) | 42.90 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 050203; 050204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.5783 |
| Overall Length (Inch) | 3-37/64 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 1.6890 |
| Flute Length (mm) | 53.90 |
| Body Length | 90.85 |
| Body Length (Decimal Inch) | 2.5940 |
| Shank Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 24.95 |
| Modular Connection Size | KM40 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2070x0.0940; 0.2090x0.0940 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR050203__I; DFPR050204__O |
| Collar Diameter (Decimal Inch) | 0.5413 |
| Collar Diameter (mm) | 13.75 |
| Insert Lock Screw | M2-0.4x4.5T6 |
| Coolant Through | Yes |
