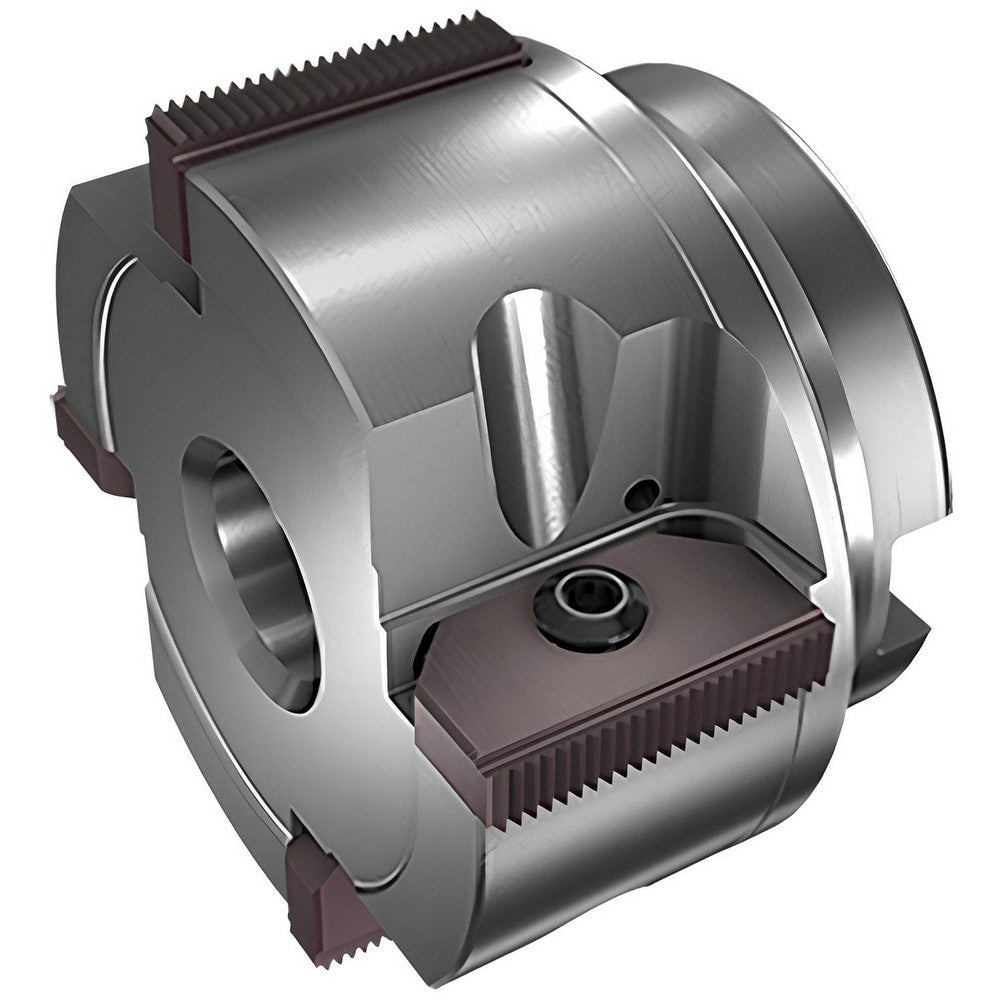

Indexable Thread Mills; Cutting Diameter (mm): 63.00; Compatible Insert Style: MT TIDC/MT TISC 1181; Insert Style: MT TIDC/MT TISC 1181
Item #: 02958619
Brand: Tool-Flo
Model #: 2456069
Product Specifications
| Cutting Diameter (mm) | 63.00 |
| Compatible Insert Style | MT TIDC/MT TISC 1181 |
| Insert Style | MT TIDC/MT TISC 1181 |
| Compatible Insert Size Code | MT TIDC/MT TISC 1181 |
| Toolholder Style | Shell Mill Cutter Body |
| Shank Type | Taper |
| Arbor Hole Diameter (mm) | 22.00 |
| Insert Holding Method | Screw |
| Number of Threading Inserts | 4 |
| Overall Length (mm) | 50.0000 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
| Thread Type | Internal; External |
| Series | MT SERIES |
| Flute Type | Straight |
| Cutting Tool Application | Threading |
| Tool Application | Thread Milling |
| Tool Performance | General Purpose |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| UNSPSC Code | 23291800 |
