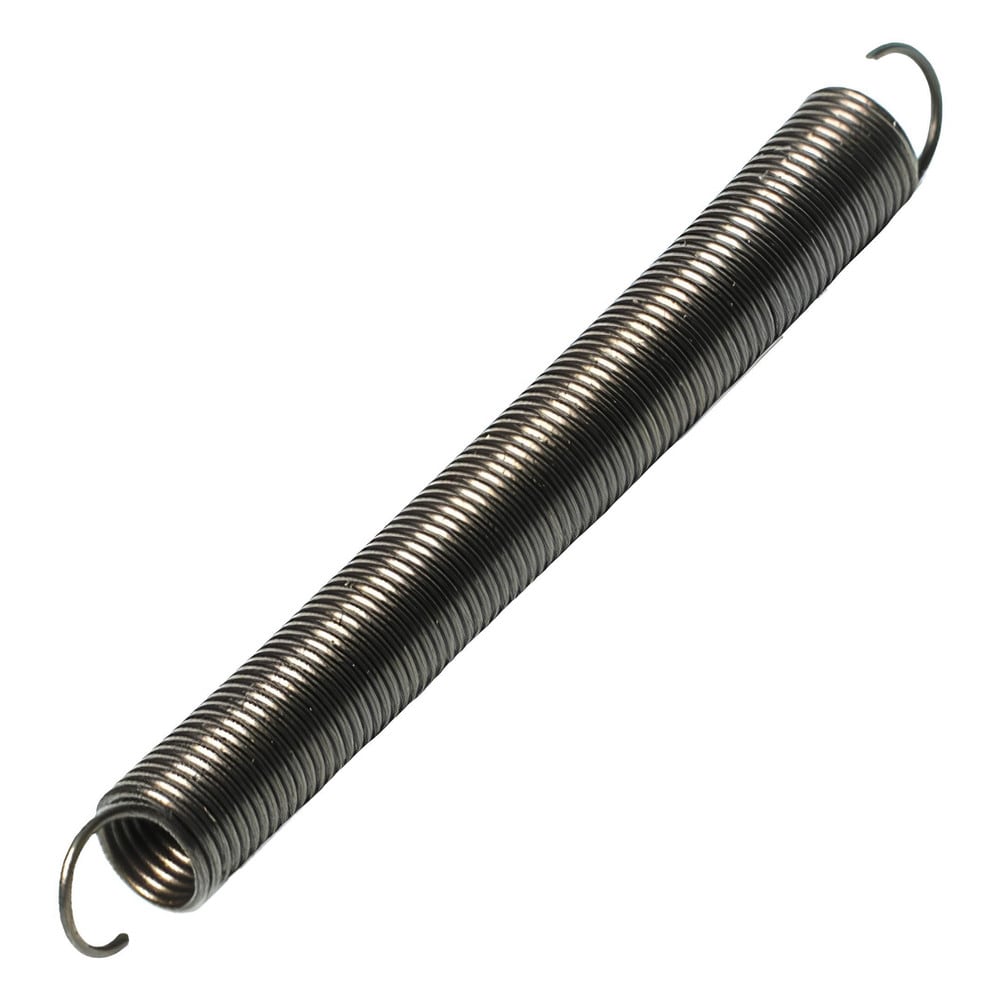

Extension Springs; End Type: Hook; Outside Diameter (mm): 55.0000; Spring Rate: 4.8000; Material: Music Wire; Overall Length (Decimal Inch): 15.2340
Item #: 02997286
Brand: Associated Spring Raymond
Model #: MHM5505000377M
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 55.0000 |
| Spring Rate | 4.8000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 15.2340 |
| Initial Tension (N) | 80.3 |
| Maximum Extended Length (mm) | 921.00 |
| Free Length (mm) | 377.000 |
| Inside Hook Length (Fractional Inch) | 14-27/32 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 5.00 |
| UNSPSC Code | 31161907 |
