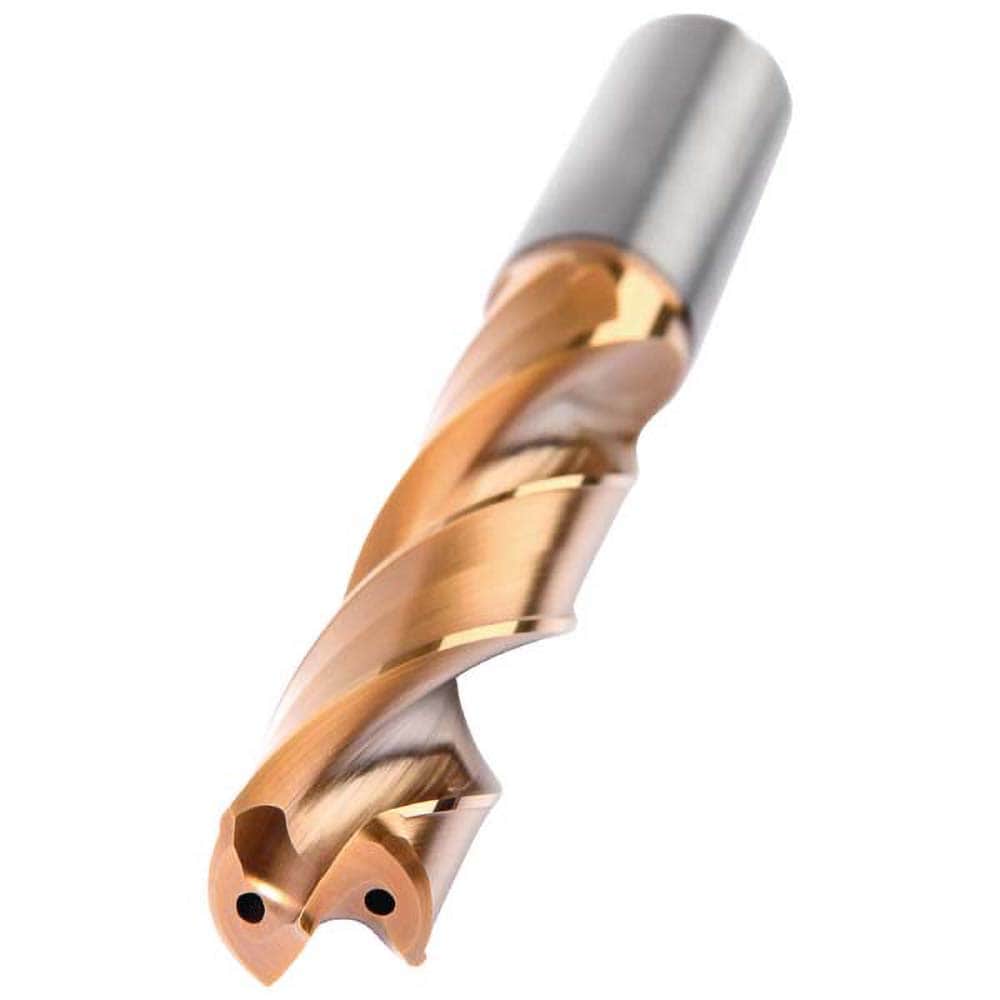

Jobber Drill: 3.50 mm Dia, 143 deg Point, Solid Carbide
Item #: 15662679
Brand: Kennametal
Model #: 6783465
Product Specifications
| Drill Bit Size (mm) | 3.50 |
| Drill Bit Size (Decimal Inch) | 0.1378 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 143 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Flute Length (mm) | 27.00 |
| Flute Length (Decimal Inch) | 1.0630 |
| Proprietary Coating/Finish | AlTiN/AlTiSiN |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 3/16 |
| Maximum Drilling Depth (mm) | 21.40 |
| Shank Length (Decimal Inch) | 1.4370 |
| Drill Point Length (mm) | 1.03 |
| Shank Type | Straight |
| Drill Bit Grade | Specialized |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Drill Bit Size Range (mm) | 3.00 - 4.00 |
| UNSPSC Code | 23241634 |
