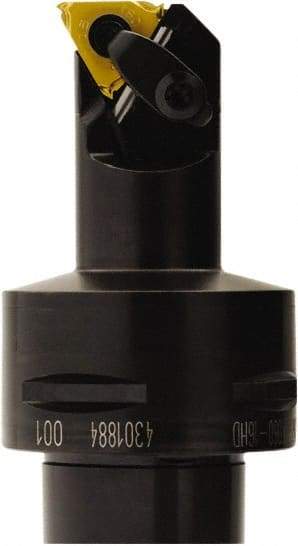

Seco - Internal Thread, Left Hand Cut, 63mm Shank Width x 63mm Shank Height Indexable Threading Toolholder - 22NL Insert Compatibility, CN Toolholder, Series Snap Tap
Item #: 44545754
Brand: Seco
Model #: 30469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 63.00 |
| Shank Width/Diameter (Decimal Inch) | 2.4803 |
| Shank Height (mm) | 63.00 |
| Shank Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | 22NL |
| Series | Snap Tap |
| Toolholder Style | CN |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Head Length (mm) | 80.00 |
| Head Length (Decimal Inch) | 3.1496 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
