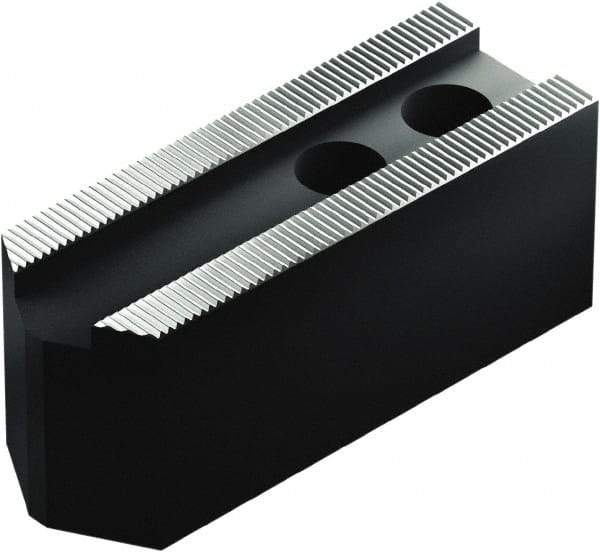

Schunk - 12" Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 30mm Btw Mount Hole Ctrs, 145mm Long, 50mm Wide, 50mm High, 18mm Groove, M14mm Fastener
Item #: 44459337
Brand: Schunk
Model #: 132603
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 12 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 12.0000 |
| Maximum Compatible Chuck Diameter (mm) | 315.00 |
| Minimum Compatible Chuck Diameter (mm) | 315.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 12.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 12 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Groove Width (mm) | 18.00 |
| Groove Width (Decimal Inch) | 0.7087 |
| Distance Between Mount Hole Centers (mm) | 30.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1811 |
| Tongue Width (Decimal Inch) | 0.0000 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | M14 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 50.00 |
| Overall Length (mm) | 145.00 |
