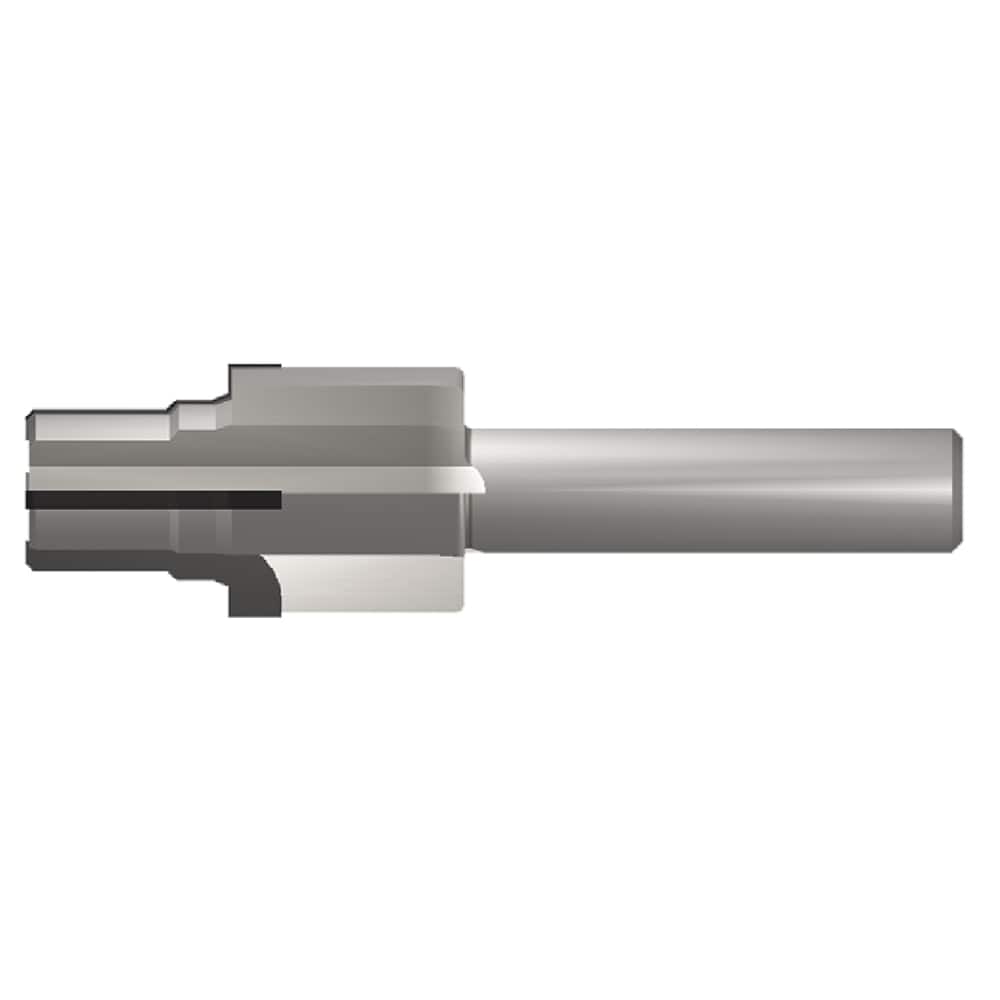

Porting Tool: 1.751″ Spotface Dia, 1-1/4″ Tube OD, Reamer, Tube Dash #20 1.261″ Min Pilot Dia, 0.6425″ Pilot Length, 4 Flutes
Item #: 44064434
Brand: Scientific Cutting Tools
Model #: RPT-20A
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.7510 |
| Tube Outside Diameter Compatibility (Inch) | 1-1/4 |
| Pilot Type | Reamer |
| Tube Dash Number | 20 |
| Minimum Pilot Diameter (Decimal Inch) | 1.2610 |
| Pilot Length | 0.6425 |
| Overall Length (Decimal Inch) | 4.5200 |
| Number Of Flutes | 4 |
| Identification Groove | No |
| Seal Angle | 21 |
| Thread Type | UNJEF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 3/4 |
| Shank Length (Decimal Inch) | 2.0000 |
| Maximum Pilot Diameter (Decimal Inch) | 1.3880 |
| Head Length (Decimal Inch) | 2.5200 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN+ |
