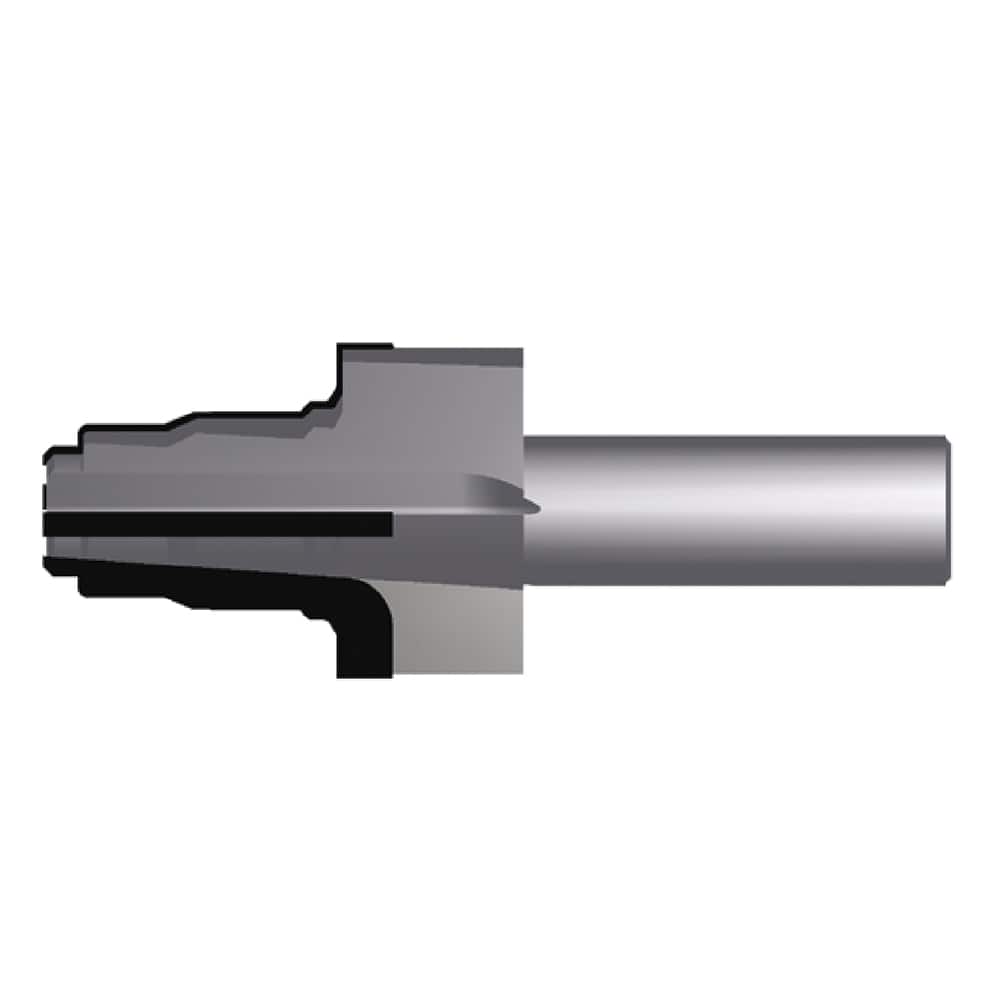

Porting Tool: 1.665″ Spotface Dia, Reamer, 1.0620-12″ Port, Tube Dash #12 0.650″ Min Pilot Dia, 0.125″ Pilot Length, 4-1/2″ OAL, 4 Flutes, BACD 2036
Item #: 44048957
Brand: Scientific Cutting Tools
Model #: BACD2036-12
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.6650 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 1.0620-12 |
| Tube Dash Number | 12 |
| Minimum Pilot Diameter (Decimal Inch) | 0.6500 |
| Pilot Length | 0.1250 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Number Of Flutes | 4 |
| Standards | BACD 2036 |
| Identification Groove | No |
| Seal Angle | 30 |
| Thread Type | UNJF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 3/4 |
| Shank Length (Decimal Inch) | 2.1300 |
| Maximum Pilot Diameter (Decimal Inch) | 1.2420 |
| Head Length (Decimal Inch) | 2.3700 |
| Coating/Finish | Bright |
