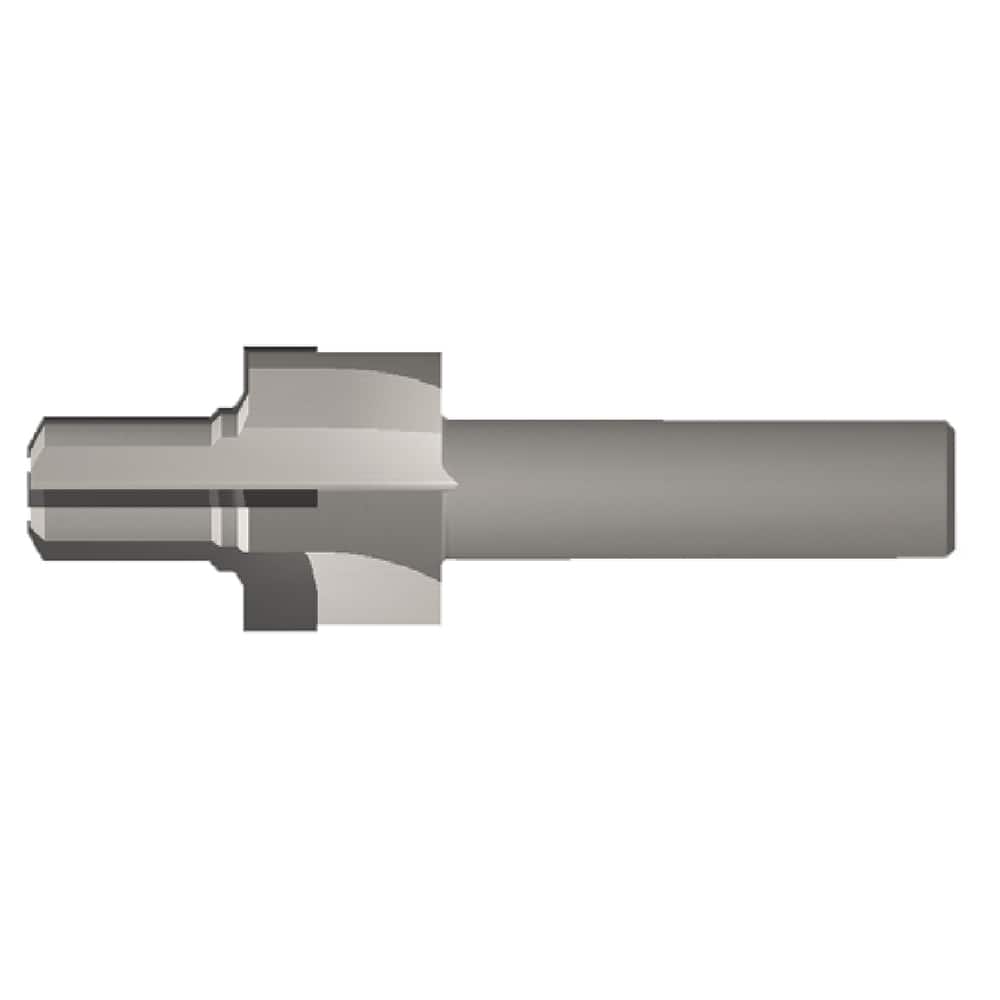

Porting Tool: 2.628″ Spotface Dia, 1-1/2″ Tube OD, Reamer, Tube Dash #24 1.788″ Min Pilot Dia, 1.012″ Pilot Length, 4 Flutes, AND 10050
Item #: 44042331
Brand: Scientific Cutting Tools
Model #: AND10050-24RA
Product Specifications
| Spotface Diameter (Decimal Inch) | 2.6280 |
| Tube Outside Diameter Compatibility (Inch) | 1-1/2 |
| Pilot Type | Reamer |
| Tube Dash Number | 24 |
| Minimum Pilot Diameter (Decimal Inch) | 1.7880 |
| Pilot Length | 1.0120 |
| Overall Length (Decimal Inch) | 4.5400 |
| Number Of Flutes | 4 |
| Standards | AND 10050 |
| Identification Groove | No |
| Seal Angle | 30 |
| Thread Type | UN |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Length (Decimal Inch) | 2.2500 |
| Maximum Pilot Diameter (Decimal Inch) | 1.9005 |
| Head Length (Decimal Inch) | 2.2900 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN+ |
