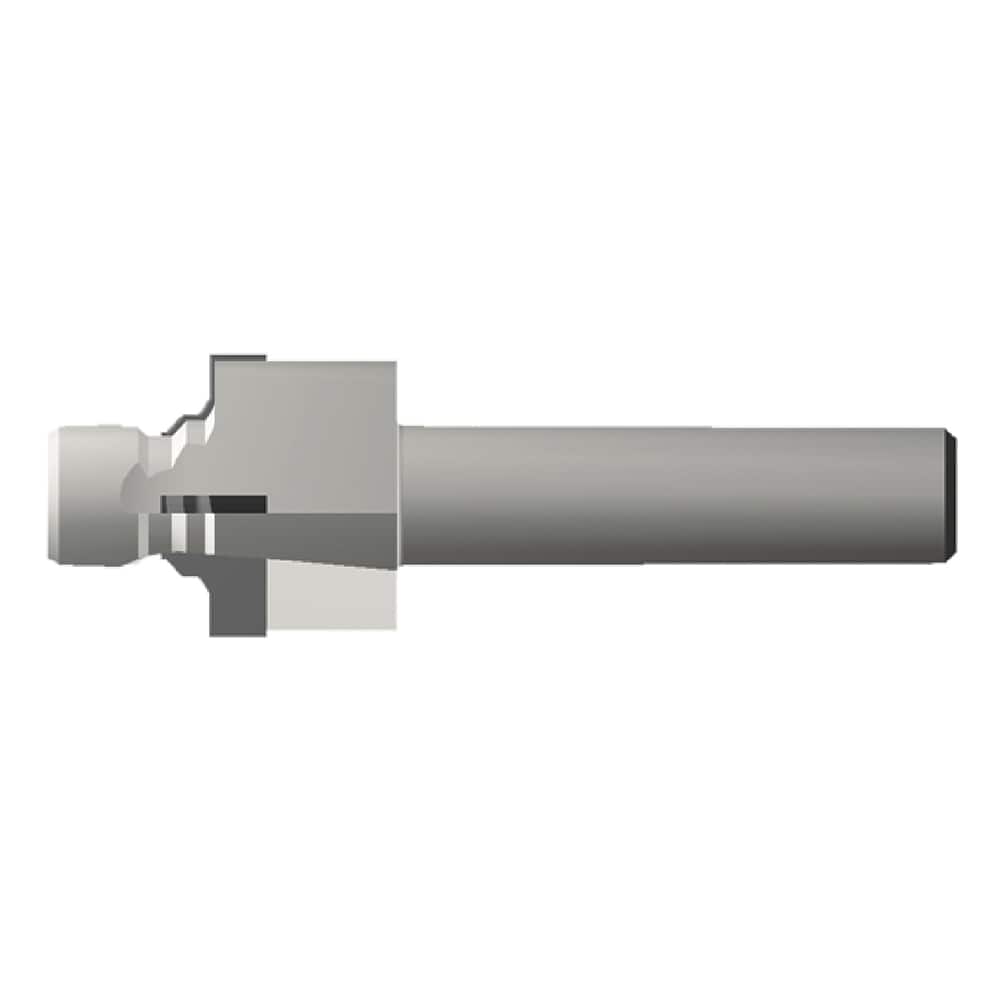

Porting Tool: 0.742″ Spotface Dia, 1/8″ Tube OD, Plain, Tube Dash #2 0.270″ Min Pilot Dia, 0.294″ Pilot Length, 3″ OAL, 3 Flutes, AND 10050
Item #: 44039733
Brand: Scientific Cutting Tools
Model #: AND10050-2SA
Product Specifications
| Spotface Diameter (Decimal Inch) | 0.7420 |
| Tube Outside Diameter Compatibility (Inch) | 1/8 |
| Pilot Type | Plain |
| Tube Dash Number | 2 |
| Minimum Pilot Diameter (Decimal Inch) | 0.2700 |
| Pilot Length | 0.2940 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Number Of Flutes | 3 |
| Standards | AND 10050 |
| Identification Groove | No |
| Seal Angle | 30 |
| Thread Type | UNF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1/2 |
| Shank Length (Decimal Inch) | 2.0000 |
| Maximum Pilot Diameter (Decimal Inch) | 0.3305 |
| Head Length (Decimal Inch) | 1.0000 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN+ |
