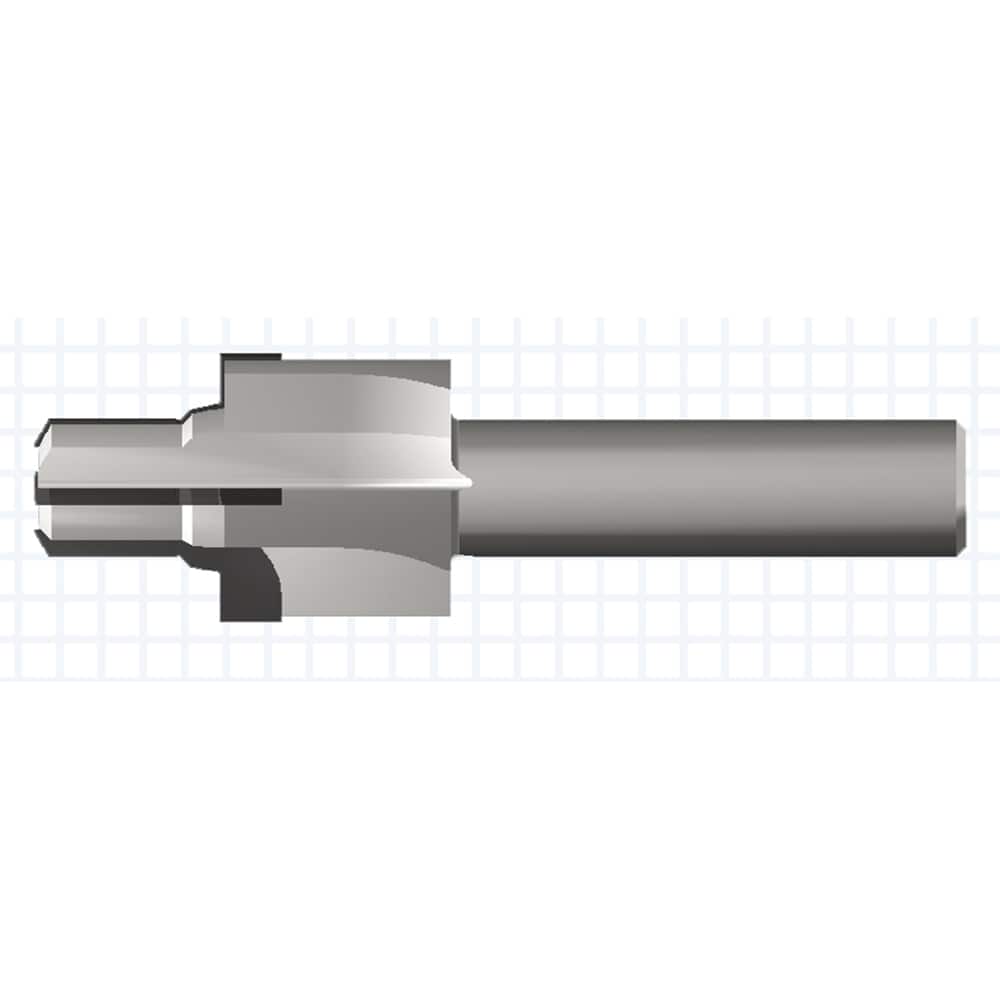

Porting Tool: 2.248″ Spotface Dia, Reamer 1.811″ Min Pilot Dia, 0.8583″ Pilot Length, 4 Flutes, ISO 6149-1 & SAE J2244-1
Item #: 44037919
Brand: Scientific Cutting Tools
Model #: 6149-M48X2.0A
Product Specifications
| Spotface Diameter (Decimal Inch) | 2.2480 |
| Spotface Diameter (mm) | 57.10 |
| Pilot Type | Reamer |
| Port Thread Size (mm) | M48x2.00 |
| Minimum Pilot Diameter (mm) | 46.00 |
| Minimum Pilot Diameter (Decimal Inch) | 1.8110 |
| Pilot Length | 0.8583 |
| Overall Length (Decimal Inch) | 4.3500 |
| Number Of Flutes | 4 |
| Standards | ISO 6149-1; SAE J2244-1 |
| Identification Groove | No |
| Seal Angle | 15 |
| Thread Type | Metric Fine |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Length (Decimal Inch) | 2.2500 |
| Maximum Pilot Diameter (Decimal Inch) | 1.9862 |
| Head Length (Decimal Inch) | 2.1000 |
| Coating/Finish | AlTiN+ |
