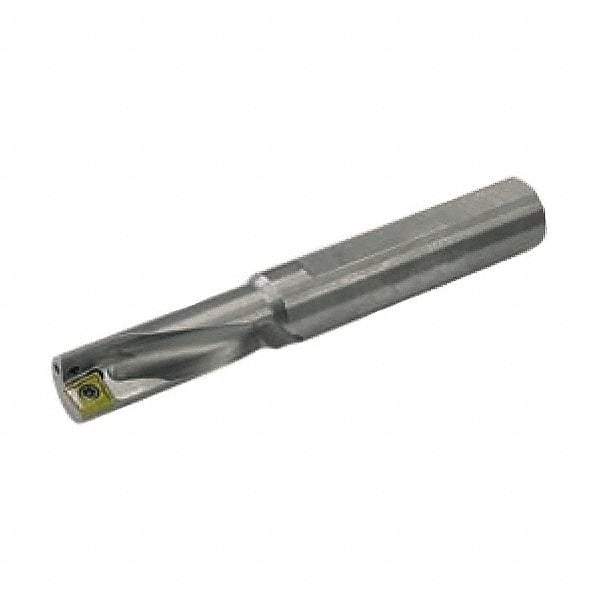

Allied Machine and Engineering - 0.94" Max Drill Depth, 3xD, 10mm Diam, Indexable Insert Drill - 1 Insert, 1/2" Shank Diam, Straight Shank
Item #: 43939024
Brand: Allied Machine and Engineering
Model #: 11147311
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 10.00 |
| Drill Diameter (Decimal Inch) | 0.3937 |
| Maximum Drill Depth (Decimal Inch) | 0.9400 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Cutting Direction | Left Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (Decimal Inch) | 0.1570 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.4130 |
| Overall Length/Projection (Decimal Inch) | 3.1500 |
| Insert Compatibility | XCET 040102FL-27P; XCET 040102FL-27Q; XCET 040102FR-27P; XCET 040102FR-27Q; XCET 040104FL-27P; XCET 040104FL-27Q; XCET 040104FR-27P; XCET 040104FR-27Q; XCNT 040102EL; XCNT 040102ER; XCNT 040104EL; XCNT 040104ER |
| Flute Length (Decimal Inch) | 0.9400 |
| Shank Length (Decimal Inch) | 2.2100 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/16-27 |
