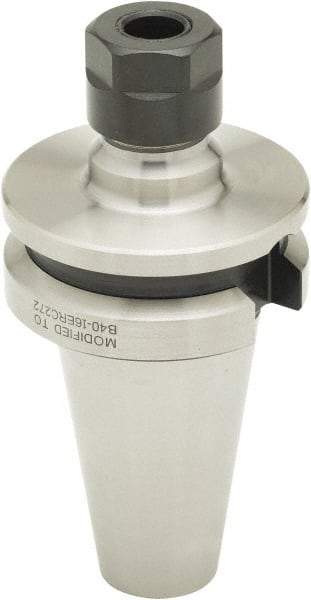

Parlec - 0.5mm to 10mm Capacity, 2.62" Projection, BT40 Taper Shank, ER16 Collet Chuck - 5.2" OAL
Item #: 43910553
Brand: Parlec
Model #: B40-16ERP262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (Decimal Inch) | 2.6200 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 5.2000 |
| Actuator Type | Wrench |
| Type | ER Coolant Collet |
| Nose Diameter (Decimal Inch) | 1.1100 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1100 |
