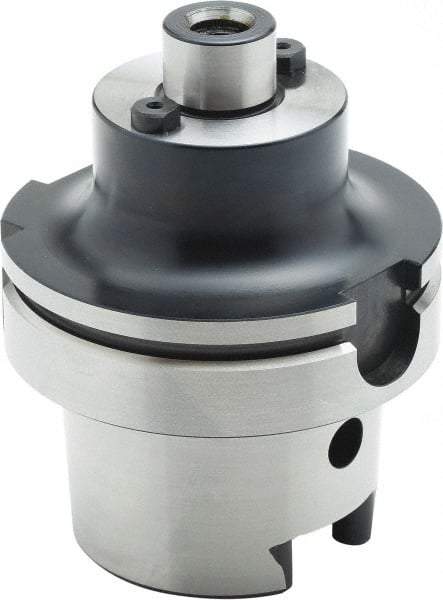

Parlec - HSK100 Taper Shank 1-1/2" Pilot Diam Shell Mill Holder - 2.88" Flange to Nose End Projection, 3-3/4" Nose Diam, 3/4-16 Lock Screw, Through-Spindle Coolant
Item #: 43909332
Brand: Parlec
Model #: H100-15SM2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK100 |
| Pilot Diameter (Inch) | 1-1/2 |
| Pilot Diameter (Decimal Inch) | 1.5000 |
| Projection Flange to Nose End (Decimal Inch) | 2.8800 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 3.7500 |
| Balanced to (RPM) | 40000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Lock Screw Thread Size | 3/4-16 |
