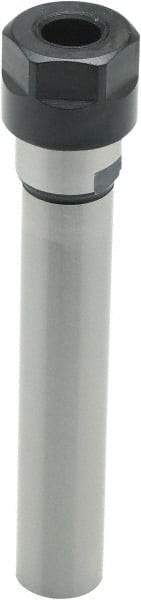

Parlec - 0.5mm to 7mm Capacity, 1-1/4" Projection, Straight Shank, ER11 Collet Chuck - 6.75" OAL, 1/2" Shank Diam
Item #: 43907294
Brand: Parlec
Model #: ER11-500-6H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1/2 |
| Projection (Decimal Inch) | 1.2500 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 7.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.2756 |
| Overall Length (Decimal Inch) | 6.7500 |
| Type | ER Collet |
| Shank Length (Decimal Inch) | 5.5000 |
| Nose Diameter (Decimal Inch) | 0.6150 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.6150 |
