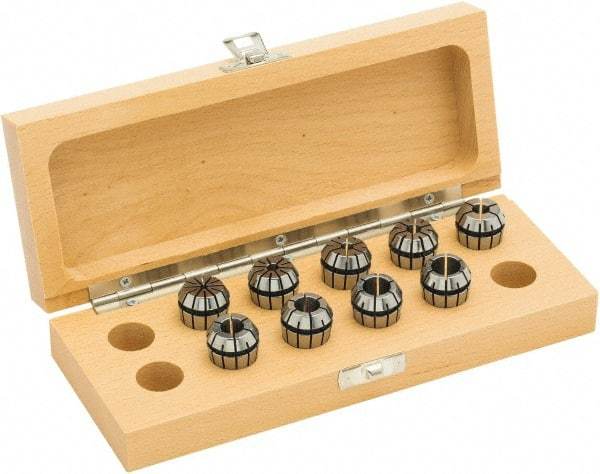

Parlec - 9 Piece, 1/8" to 1/2" Capacity, ER Collet Set - 0.0002" TIR, Series ER20
Item #: 43906494
Brand: Parlec
Model #: 5UMER20-SI009
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Number of Pieces | 9 |
| Minimum Collet Capacity (Inch) | 1/8 |
| Minimum Collet Capacity (Decimal Inch) | 0.1250 |
| Maximum Collet Capacity (Inch) | 1/2 |
| Maximum Collet Capacity (Decimal Inch) | 0.5000 |
| TIR (Decimal Inch) | 0.000200 |
| Size 1 (Inch) | 1/8; 5/32; 3/16; 1/4; 5/16; 3/8; 7/16; 15/32; 1/2 |
| Size 1 (Decimal Inch) | 0.1250; 0.1563; 0.1875; 0.2500; 0.3125; 0.3750; 0.4375; 0.4688; 0.5000 |
| PSC Code | 5136 |
