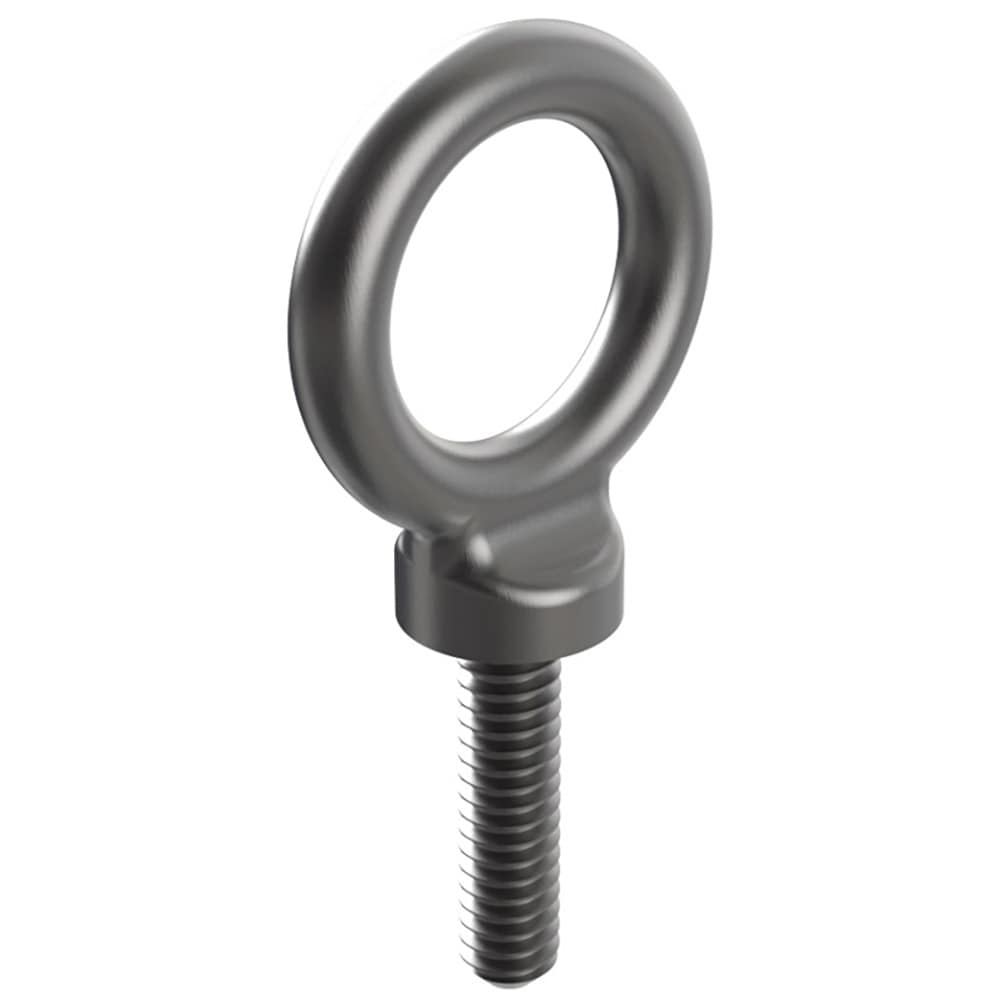

Eye Bolts (Lifting); Eye Bolt Type: Forged; Shoulder Type: With Shoulder; Lifting Capacity (kg): 16400.00; Eye Inside Diameter (mm): 82.000
Item #: 88150156
Brand: Jergens
Model #: 18571
Product Specifications
| Eye Bolt Type | Forged |
| Shoulder Type | With Shoulder |
| Lifting Capacity (kg) | 16400.00 |
| Eye Inside Diameter (mm) | 82.000 |
| Eye Outside Diameter (mm) | 174.600 |
| Thread Size | M48 x 5.0 |
| Full or Partial Threading | Fully Threaded |
| Thread Length (mm) | 101.60 |
| Overall Length (mm) | 296.8000 |
| Shank Length (mm) | 101.600 |
| Shank Diameter (Inch) | 2 |
| Material | Forged Steel |
| Shoulder/Base Diameter (mm) | 69.80 |
| Finish Coating | Mill |
| System Of Measurement | Metric |
| UNSPSC Code | 31161610 |
| Country of Origin | UNITED STATES |
