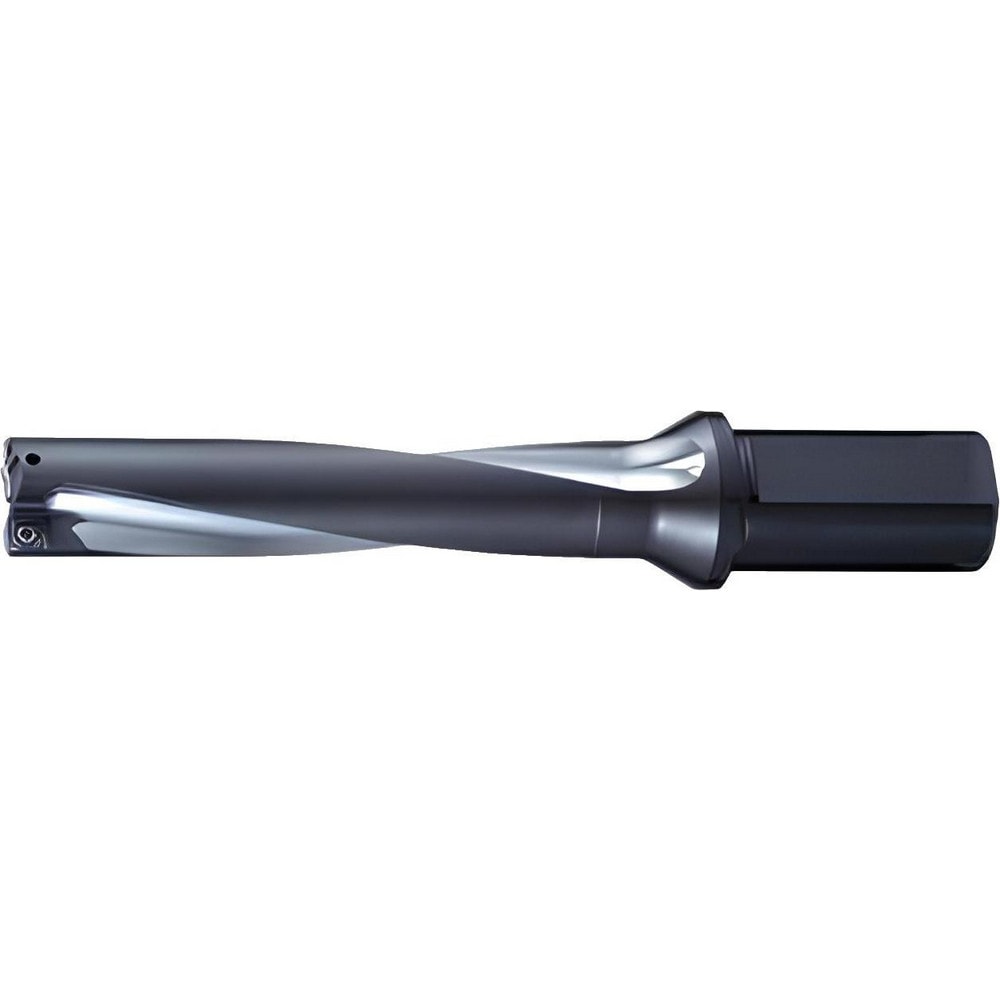

Indexable Insert Drill: P2D0875FS100A07, 7/8" Max Dia, 1-3/4" Max Depth, 2xD, 1" Shank Dia
Item #: 55896625
Brand: OSG
Model #: 52502000
Product Specifications
| Compatible Drill Style | P2D |
| Maximum Drill Diameter (Inch) | 7/8 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Inch) | 1-3/4 |
| Maximum Drill Depth (Decimal Inch) | 1.7500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 073106 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.8610 |
| Series | 52502 |
| Flute Length (Decimal Inch) | 2.3410 |
| Body Length (Decimal Inch) | 2.6560 |
| Shank Length (Decimal Inch) | 2.2050 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 7.11x7.11 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT073106 |
| Insert Lock Screw | 7808136 |
| Coolant Through | Yes |
| Compatible Drill Style | P2D |
| Maximum Drill Diameter (Inch) | 7/8 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Inch) | 1-3/4 |
| Maximum Drill Depth (Decimal Inch) | 1.7500 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 073106 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.8610 |
| Series | 52502 |
| Flute Length (Decimal Inch) | 2.3410 |
| Body Length (Decimal Inch) | 2.6560 |
| Shank Length (Decimal Inch) | 2.2050 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 7.11x7.11 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT073106 |
| Insert Lock Screw | 7808136 |
| Coolant Through | Yes |
| MSC Part # | 55896625 |
| Mfr Part # | 52502000 |
| Country of Origin Country of Origin is subject to change | Japan |
