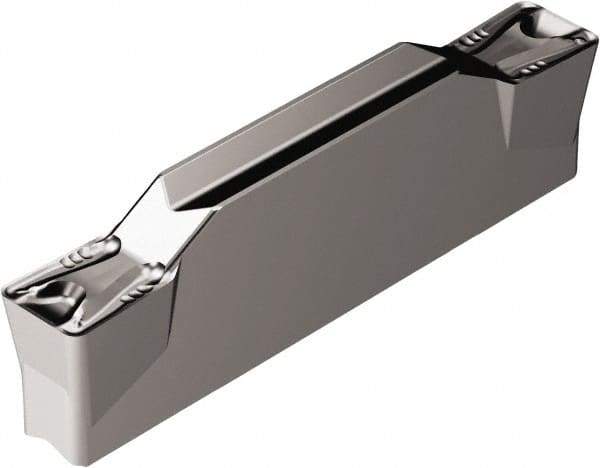

Sandvik Coromant - 0800N123 TM Grade 1105, 8mm Cutting Width Carbide Grooving Insert - 28mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiAlN Finish
Item #: 43776327
Brand: Sandvik Coromant
Model #: 6075319
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0800 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 28.00 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | TM |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | N123L2-0800-0008-TM 1105 |
| Insert Thickness (Decimal Inch) | 0.2382 |
