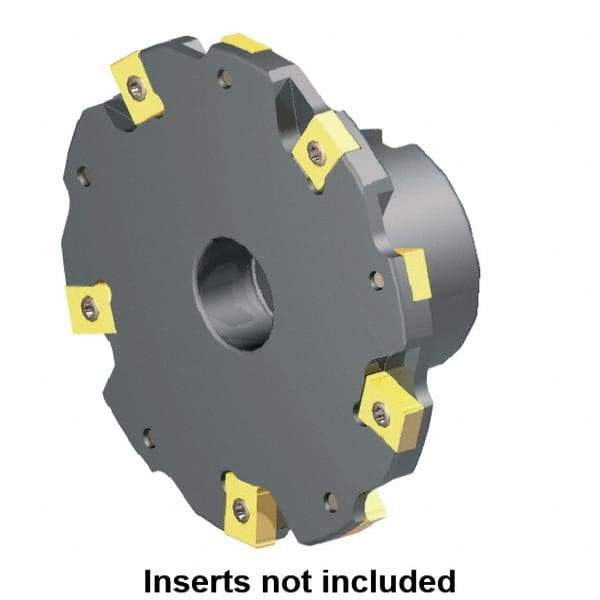

Kennametal - Shell Mount Connection, 0.2362" Cutting Width, 0.6299" Depth of Cut, 80mm Cutter Diam, 0.8661" Hole Diam, 4 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1235... Insert
Item #: 43640325
Brand: Kennametal
Model #: 1131463
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 4 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1235... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Cutting Width (Decimal Inch) | 0.2756 |
| Maximum Cutting Width (mm) | 7.00 |
| Hub Diameter (mm) | 40.00 |
| Hub Diameter (Decimal Inch) | 1.5748 |
