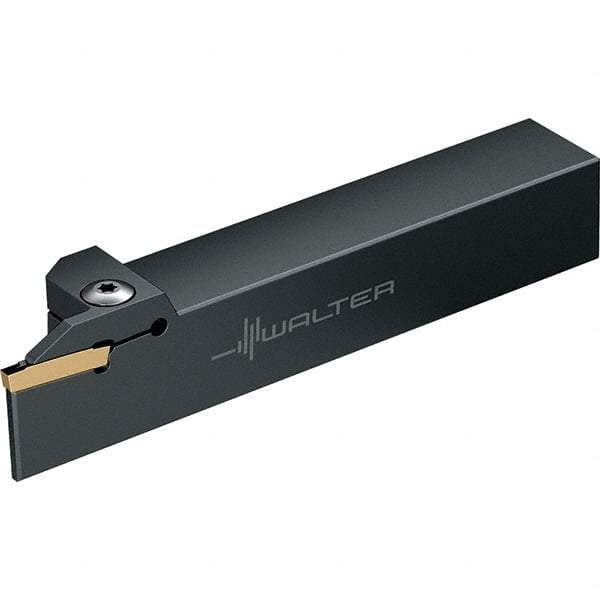

Walter - External Thread, 1.2598" Max Depth of Cut, 6mm Min Groove Width, 165mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 25.4mm Shank Height x 25.4mm Shank Width, GX24-4E6/F6.. Insert Style, G1011 Toolholder Style
Item #: 43618073
Brand: Walter
Model #: 6061654
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Maximum Groove Width (mm) | 6.35 |
| Overall Length (Decimal Inch) | 6.4961 |
| Overall Length (mm) | 165.00 |
| Toolholder Style | G1011 |
| Insert Compatibility | GX24-4E6/F6.. |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0158 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Shank Length (Decimal Inch) | 4.3307 |
| Shank Length (mm) | 110.00 |
| Complete Insert Compatibility | GX24-4E600N030-CE4; GX24-4E600N03-CE4; GX24-4E600N050-GD3; GX24-4E600N050-UA4; GX24-4E600N050-UF4; GX24-4E600N05-GD3; GX24-4E600N05-GD6; GX24-4E600N05-UD6; GX24-4E600N05-UF4; GX24-4E600N080-UF4; GX24-4E600N08-UF4; GX24-4E600N300-RD4; GX24-4E600N30-RD4 |
