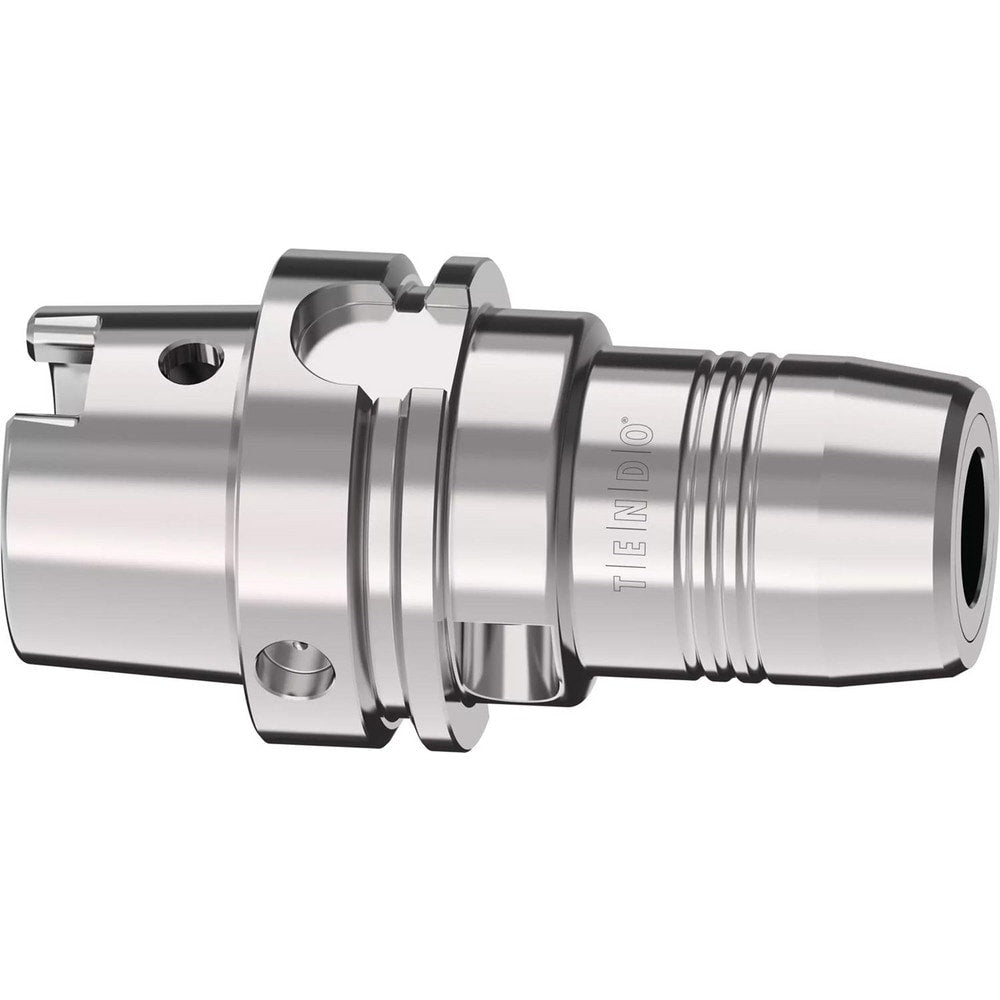

Hydraulic Tool Chuck: HSK63A Taper Shank, 8.00 mm Hole
Item #: 76992866
Brand: Schunk
Model #: 1360924
Product Specifications
| Shank Type | Taper |
| Taper Size | HSK63A |
| Shank Diameter (Decimal Inch) | 1.8900 |
| Shank Diameter (mm) | 48.0000 |
| Nose Diameter | 15/16 |
| Nose Diameter (Mm) ( - 2 Decimals) | 24.00 |
| Projection (mm) | 70.000 |
| Projection | 2-3/4 |
| Clamping Depth (mm) | 37.00 |
| Clamping Depth (Decimal Inch) | 1.4567 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000118 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 3.78 |
| Overall Length (mm) | 96 |
| Hole Diameter (Mm) ( - 0 Decimals) | 8.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.9449 |
| Projection (Decimal Inch) | 2.75590551 |
| UNSPSC Code | 27112800 |
| Country of Origin | Germany |
