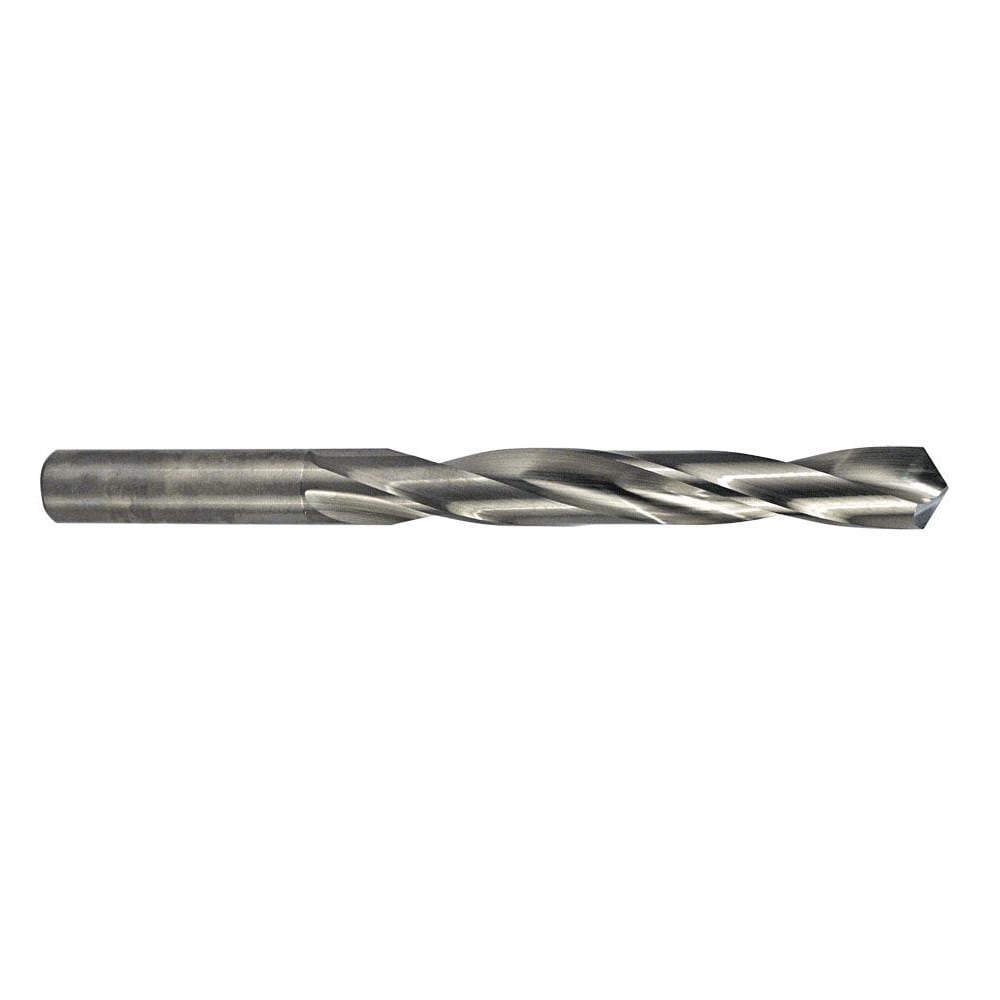

Jobber Drill: 0.1339" Dia, 118 deg Point, Solid Carbide
Item #: 96753793
Brand: M.A. Ford
Model #: 22413390
Product Specifications
| Drill Bit Size (mm) | 3.40 |
| Drill Bit Size (Decimal Inch) | 0.1339 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Facet |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; M; N |
| Shank Diameter (Decimal Inch) | 0.1339 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Spiral Type | Regular |
| Flute Length (mm) | 39.00 |
| Flute Length (Decimal Inch) | 1.5354 |
| Series | 224 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 3.4 |
| Shank Length (mm) | 31 |
| Drill Bit Diameter Tolerance | -0.013 to 0.000 mm; -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338; ISO 9001:2015 Certified |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | UNITED STATES |
