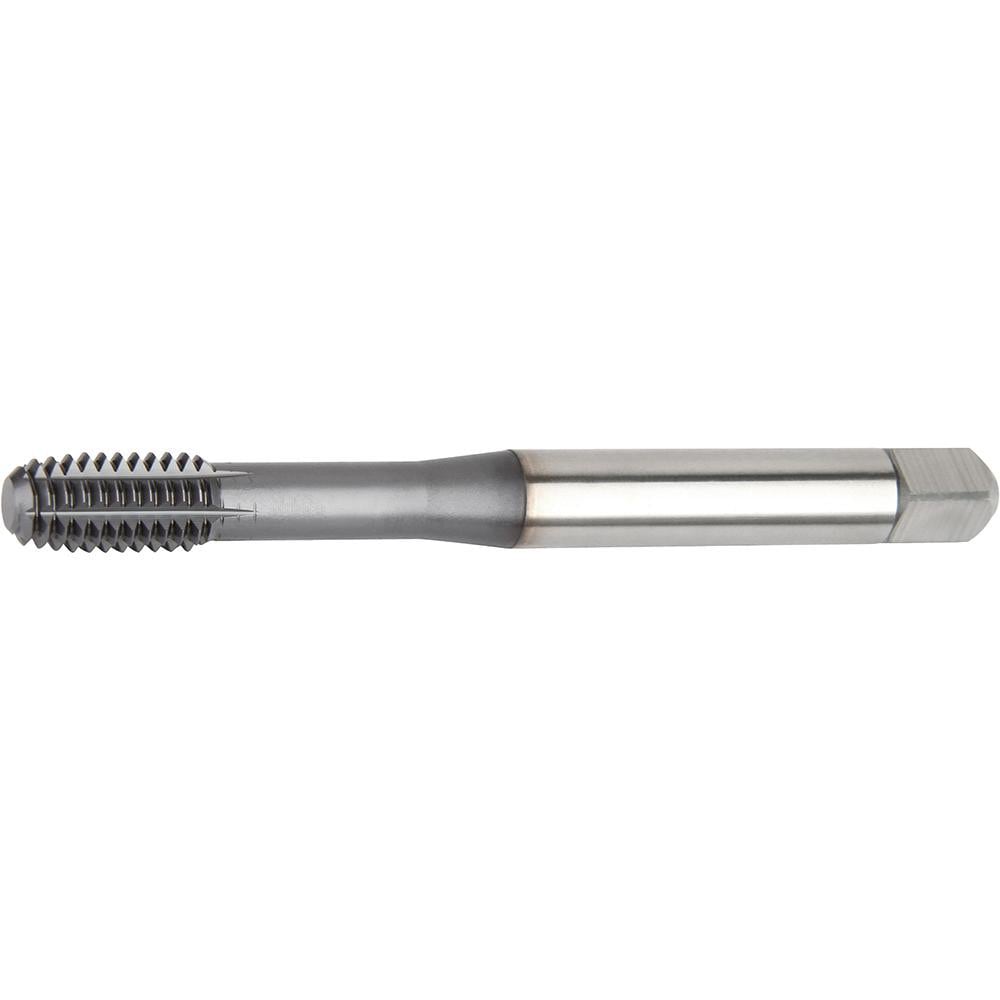

Brand: Widia / Part #: 5945095
Item #: 98977564
Brand: Widia
Model #: 5945095
Product Specifications
| Thread Size (Inch) | #4-40 |
| Overall Length (Decimal Inch) | 2.2000 |
| Chamfer | Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | H5 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.3900 |
| Thread Depth | 0.7100 |
| Thread Depth (Decimal Inch) | 0.7100 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Neck Length (Decimal Inch) | 0.3200 |
| Square Length (Decimal Inch) | 0.1900 |
| Material Application | Stainless Steel |
| Application | Metal |
| Series | GT26 |
| Tap Type | Blind |
| Tapping Depth (Decimal Inch) | 0.7100 |
| Shank Length (Decimal Inch) | 1.2600 |
| Square Size (Decimal Inch) | 0.1080 |
| Threads per Inch | 40 |
| Class Of Fit | 2B |
| Coolant Through | No |
