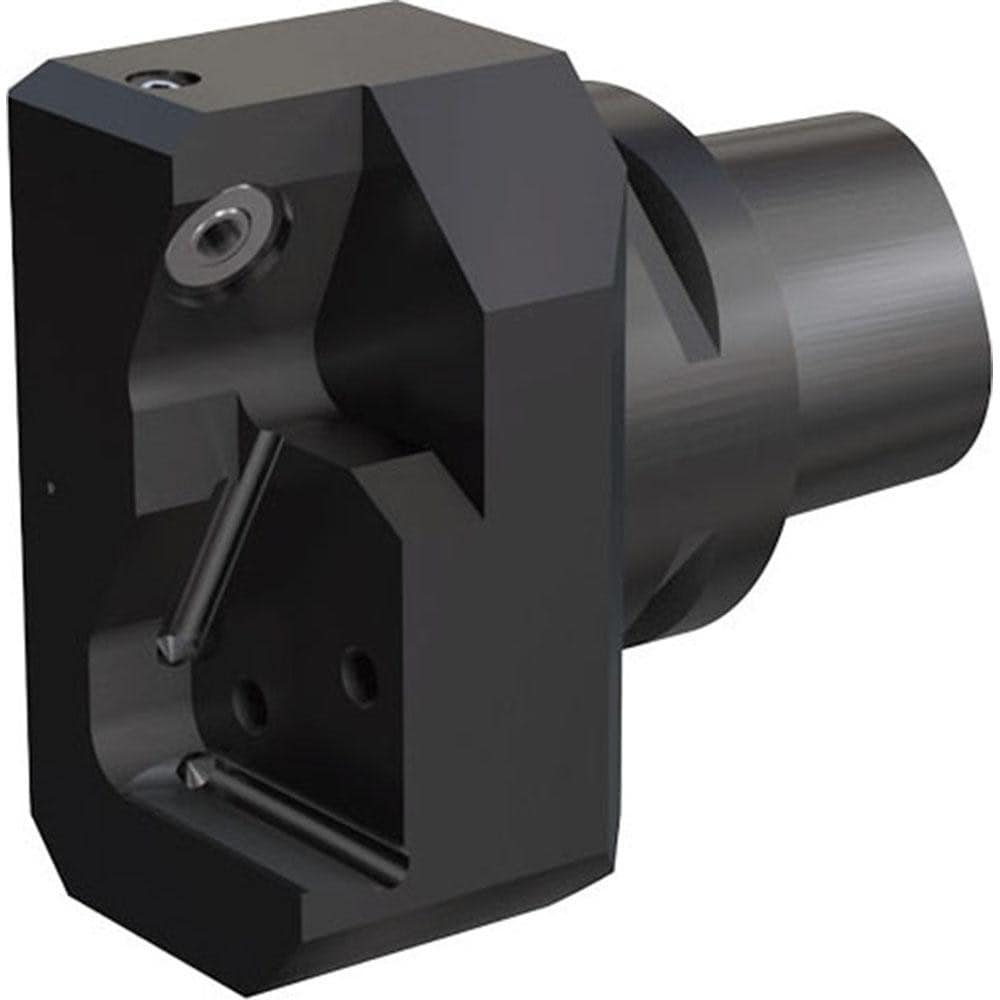

Modular Grooving Cutting Unit Heads; System Size: C3; Maximum Depth of Cut (Decimal Inch): 1.2600; Minimum Groove Width (mm): 3.00; Maximum Groove Width (mm): 6.00; Cutting Direction: Right Hand
Item #: 63730022
Brand: Tungaloy
Model #: 6714805
Product Specifications
| System Size | C3 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 6.00 |
| Cutting Direction | Right Hand |
| Modular Head Style | Blade Holder Head |
| Compatible Insert Style | STR; DTR; DTE; DTX; DTM |
| Compatible Insert Size Code | 3 |
| Series | CHFV |
| Center to Cutting Edge (mm) | 22.00 |
| Blade Style Compatibility | CAER/L; CAFR/L |
| Minimum Depth of Cut (mm) | 25.00 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 50.00 |
| UNSPSC Code | 23242100 |
| System Size | C3 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 6.00 |
| Cutting Direction | Right Hand |
| Modular Head Style | Blade Holder Head |
| Compatible Insert Style | STR; DTR; DTE; DTX; DTM |
| Compatible Insert Size Code | 3 |
| Series | CHFV |
| Center to Cutting Edge (mm) | 22.00 |
| Blade Style Compatibility | CAER/L; CAFR/L |
| Minimum Depth of Cut (mm) | 25.00 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 50.00 |
| UNSPSC Code | 23242100 |
| MSC Part # | 63730022 |
| Mfr Part # | 6714805 |
| Country of Origin Country of Origin is subject to change | Japan |
