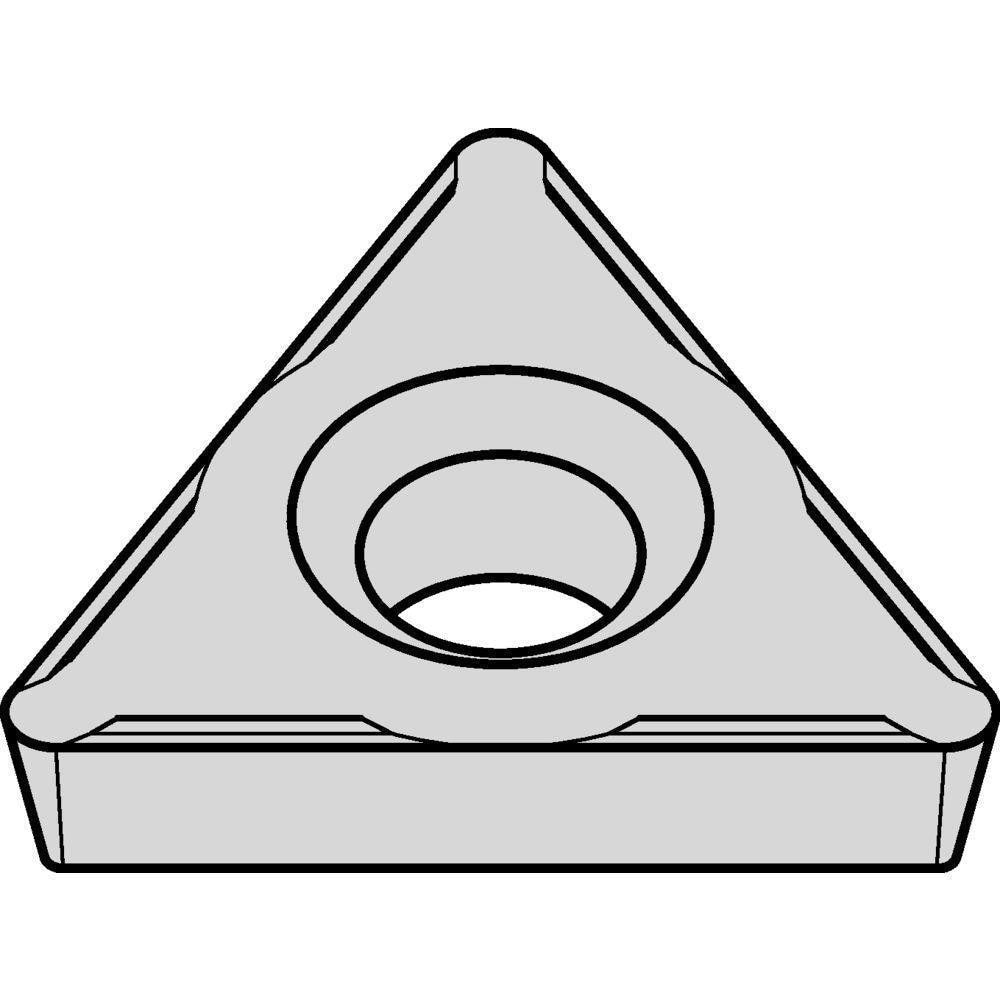

Turning Insert: TPHH321LF KCU10B, Carbide
Item #: 81401606
Brand: Kennametal
Model #: 7096415
Product Specifications
| ANSI Insert Code | TPHH321 |
| ISO Insert Code | TPHH160304 |
| Relief Angle | 11 |
| Insert Style | TPHH |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60 |
| Manufacturer Grade | KCU10B |
| Coating/Finish | AlTiN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Width (Inch) | 1/8 |
| Clearance Code | P |
| Tolerance Code | H |
| Primary Workpiece Material Code | P; S; K; M; N |
| Chip Breaker | LF |
| Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (mm - 2 Decimals) | 3.18 |
| ANSI Size Code | 321 |
| ISO Size Code | 160304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 321 |
| Country of Origin | UNITED STATES |
