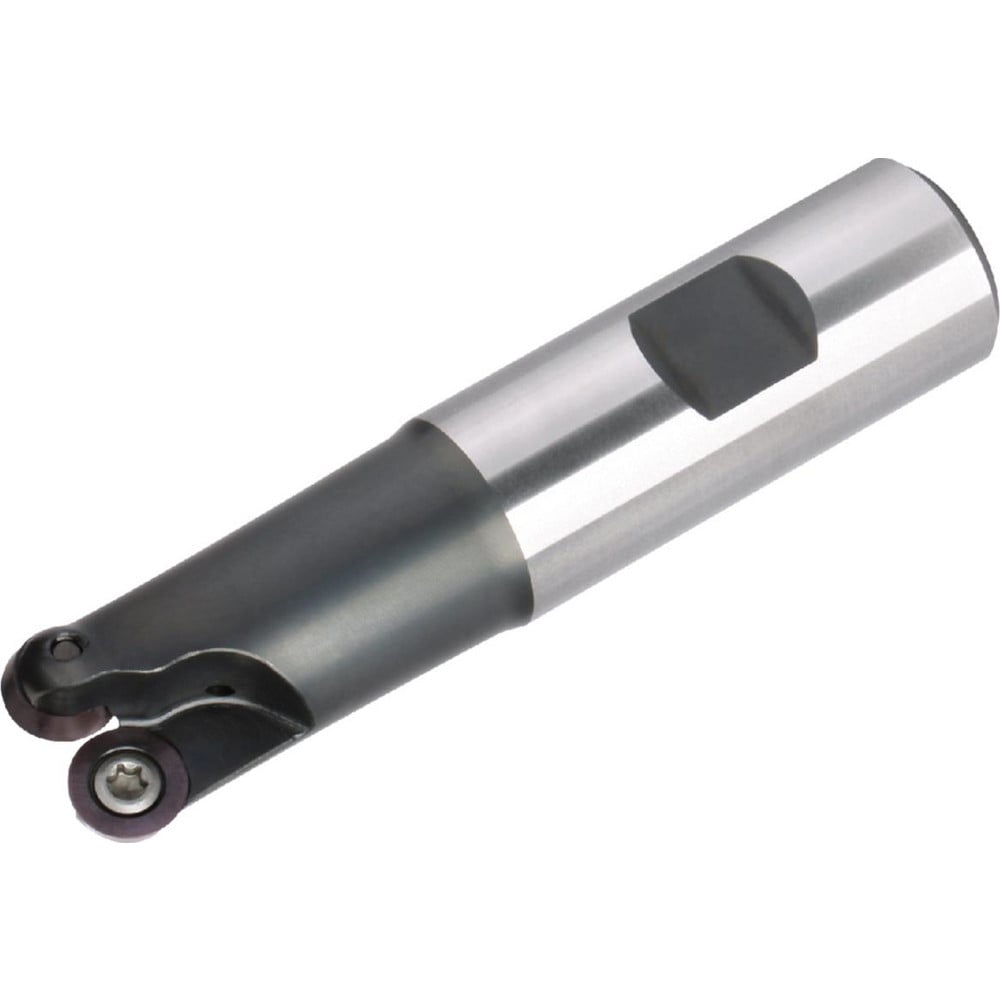

Brand: Widia / Part #: 2646602
Item #: 99390031
Brand: Widia
Model #: 2646602
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.3560 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Toolholder Style | M100 |
| Shank Type | Weldon Flat |
| Shank Diameter | 1.0000 |
| Maximum Ramping Angle | 40 |
| Compatible Insert Style | RD.. |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 1003M0 |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 6.2800 |
| Series | M100 |
| Flute Type | Straight |
| Maximum Rpm | 26000.000 |
| Shank Length (Decimal Inch) | 2.2800 |
| Functional Length (Decimal Inch) | 6.2800 |
| Head Length (Inch) | 4 |
| Insert Diameter (mm) | 10.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
