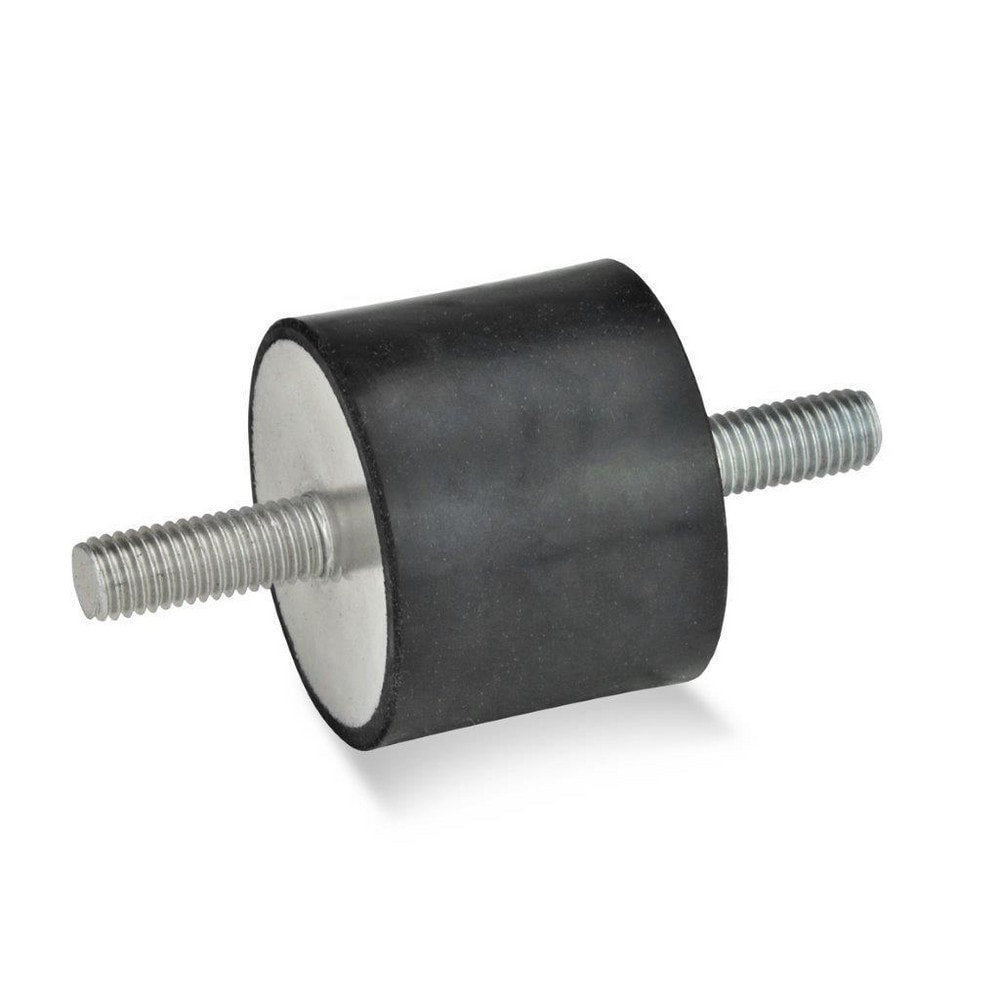

Vibration Isolators; Isolator Type: Stud/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 1570.00 N; Top Diameter: 40.00; Bottom Diameter: 40; Thread Size: M8x1.25; Overall Width: 40 mm
Item #: 69302883
Brand: J.W. Winco
Model #: 351-40-30-M8-SS-55
Product Specifications
| Isolator Type | Stud/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1570.00 N |
| Top Diameter | 40.00 |
| Bottom Diameter | 40 |
| Thread Size | M8x1.25 |
| Overall Width | 40 mm |
| Overall Diameter | 40 mm |
| Thread Length (Decimal Inch) | 0.9100 |
| Deflection | 0.3000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 76 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Stud/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 1570.00 N |
| Top Diameter | 40.00 |
| Bottom Diameter | 40 |
| Thread Size | M8x1.25 |
| Overall Width | 40 mm |
| Overall Diameter | 40 mm |
| Thread Length (Decimal Inch) | 0.9100 |
| Deflection | 0.3000 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud |
| Shape | Round |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 76 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 69302883 |
| Mfr Part # | 351-40-30-M8-SS-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
