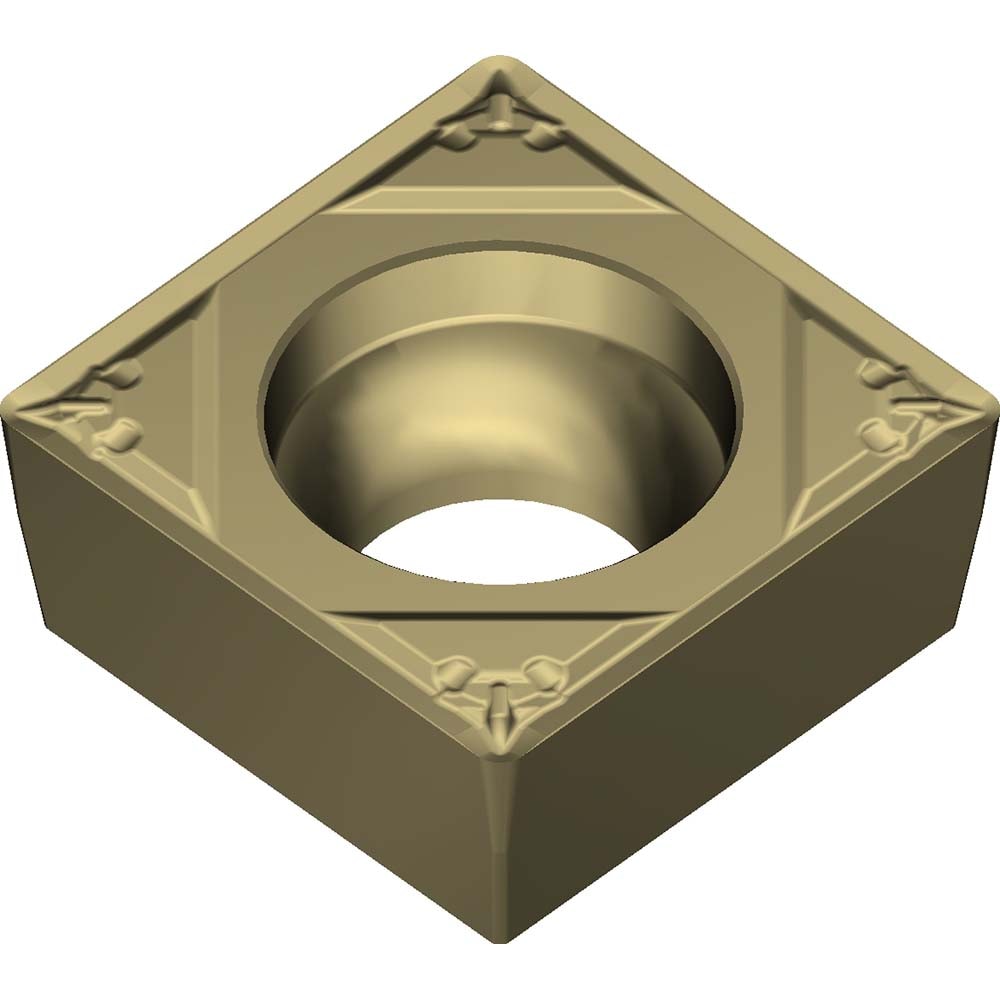

Turning Insert: SPMT321ELB AC8020P, Carbide
Item #: 19641448
Brand: Sumitomo
Model #: 19W1CPD
Product Specifications
| ANSI Insert Code | SPMT321 |
| ISO Insert Code | SPMT090304 |
| Relief Angle | 11 |
| Insert Style | SPMT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 90 |
| Manufacturer Grade | AC8020P |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | AC8020P |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Insert Shape Code | S |
| Insert Holding Method | Screw-On |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Inch) | 3/8 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Steel |
| Iso Code | SPMT090304N-LB |
| Manufacturers Catalog Number | SPMT321ELB-AC8020P |
| Material Grade | P20 |
| Chip Breaker | ELB |
| ANSI Size Code | 321 |
| ISO Size Code | 090304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 321 |
