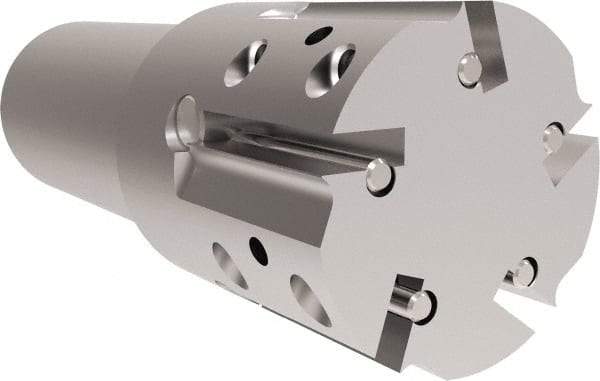

Allied Machine and Engineering - 44.58mm Cut Diam, 32mm Shank Diam, Internal/External Indexable Thread Mill - Multiple Insert Styles, 25.4mm Insert Size, Toolholder Style THP, 101.6mm OAL
Item #: 42914481
Brand: Allied Machine and Engineering
Model #: THP-1755-5F100M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 44.58 |
| Cutting Diameter (Decimal Inch) | 1.7551 |
| Insert Style | TN100K-FA10; TN100K-FA12; TN100K-FA8; TN100K-UN10E; TN100K-UN10I; TN100K-UN12E; TN100K-UN12I; TN100K-UN16E; TN100K-UN16I; TN100K-UN18E; TN100K-UN18I; TN100K-UN20E; TN100K-UN20I; TN100K-UN24E; TN100K-UN24I; TN100K-UN32E; TN100K-UN32I; TN100K-UN7I; TN100K-U |
| Insert Size (mm) | 25.40 |
| Insert Size (Decimal Inch) | 1.0000 |
| Toolholder Style | THP |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Pin; Screw |
| Number of Flutes | 5 |
