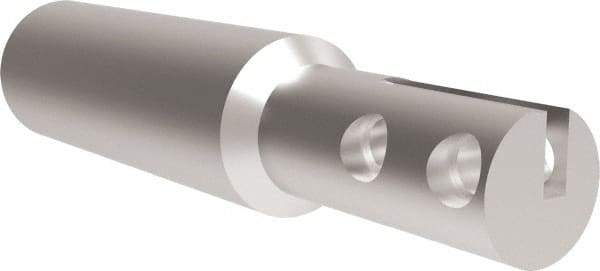

Allied Machine and Engineering - 15.88mm Cut Diam, 25mm Shank Diam, Internal/External Indexable Thread Mill - Multiple Insert Styles, 25.4mm Insert Size, Toolholder Style THN, 88.9mm OAL
Item #: 42914465
Brand: Allied Machine and Engineering
Model #: THN-0625-1F100M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 15.88 |
| Cutting Diameter (Decimal Inch) | 0.6252 |
| Insert Style | TP100K-BSPP14; TP100K-BSPP19; TP100K-UN10I; TP100K-UN12E; TP100K-UN12I; TP100K-UN14E; TP100K-UN14I; TP100K-UN16E; TP100K-UN16I; TP100K-UN18E; TP100K-UN18I; TP100K-UN20E; TP100K-UN20I; TP100K-UN24E; TP100K-UN24I; TP100K-UN32E; TP100K-UN32I; TP100K-UNJ10I; |
| Insert Size (mm) | 25.40 |
| Insert Size (Decimal Inch) | 1.0000 |
| Toolholder Style | THN |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 88.90 |
| Overall Length (Decimal Inch) | 3.5000 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
