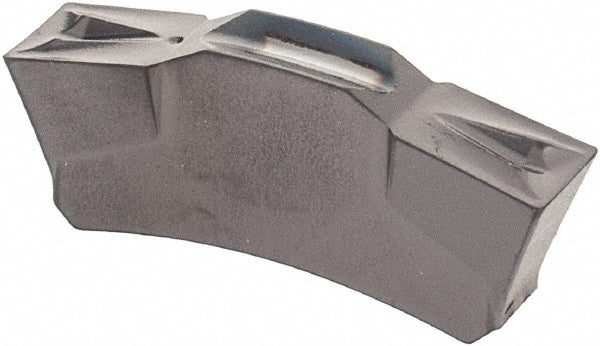

Grooving Insert: TGMF402F IC908, Solid Carbide
Item #: 75823336
Brand: Iscar
Model #: 6450086
Product Specifications
| Insert Style | TGMF |
| Insert Size Code | 402 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Maximum Depth of Cut (mm) | 2.40 |
| Insert Material | Carbide |
| Manufacturer Grade | IC908 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Measurement Type | Metric |
| Insert Size | 402 |
| Material Grade | C6; C7; C1; C2 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | No |
| Series | Top-Grip |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.697 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| UNSPSC Code | 23242105 |
| Chip Breaker | F |
| Coating/Finish | TiAlN |
| Country of Origin | Israel |
