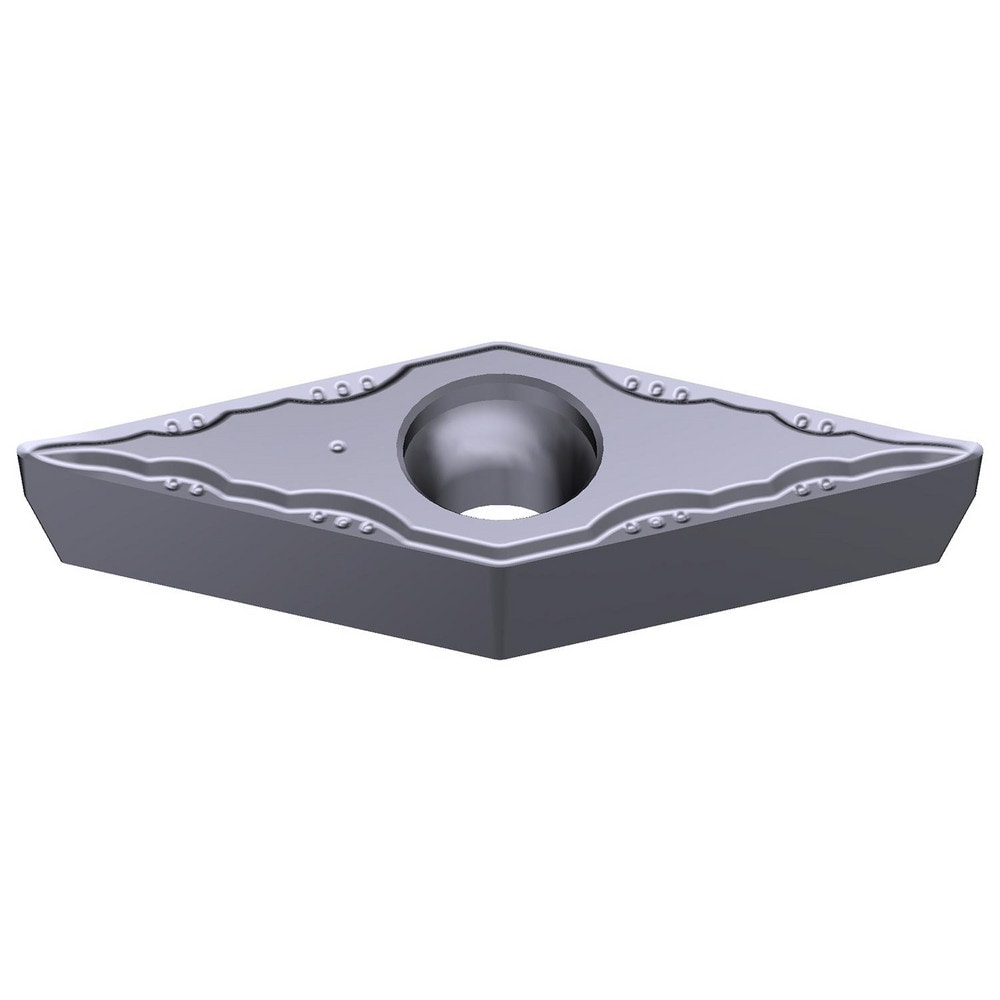

Turning Insert: VCGT221MESI AC5005S, Carbide
Item #: 14598403
Brand: Sumitomo
Model #: 1NW2018
Product Specifications
| ANSI Insert Code | VCGT221 |
| ISO Insert Code | VCGT110304 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35 |
| Manufacturer Grade | AC5005S |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | AC5005S |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Light Machining; Medium Machining |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance |
| Side Clearance | Positive |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4370 |
| Primary Workpiece Material Code | S |
| Iso Code | VCGT110304MN-SI |
| Manufacturers Catalog Number | VCGT221MESI-AC5005S |
| Chip Breaker | MESI |
| ANSI Size Code | 221 |
| ISO Size Code | 110304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 221 |
