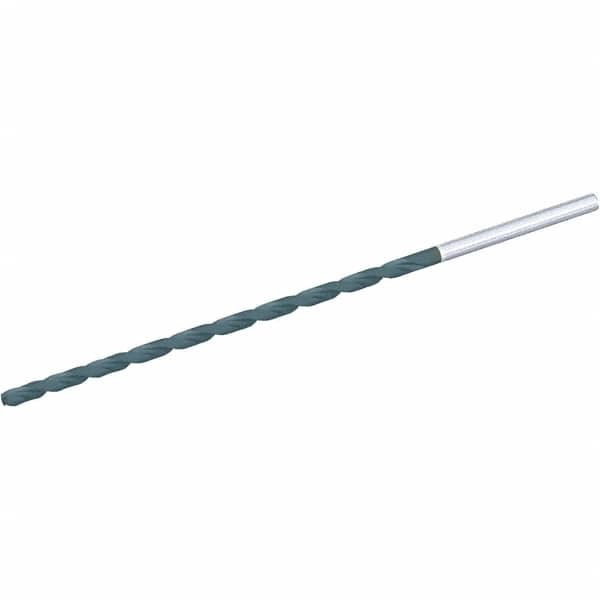

Extra Length Drill Bit: 0.3937″ Dia, 135 °, Solid Carbide - AlCrN;TiSiN Finish, 10.7087″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B273-HPG
Item #: 42705376
Brand: Kennametal
Model #: 5511952
Product Specifications
| Drill Bit Size (mm) | 10.00 |
| Overall Length (mm) | 319.00 |
| Flute Length (mm) | 272.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiSiN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B273-HPG |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | +0.000 to -0.015 mm; +0.0000 to -0.0006 in |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Point Length (mm) | 1.80 |
| Drill Point Length (Decimal Inch) | 0.0709 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Shank Length (Decimal Inch) | 1.7323 |
| Shank Length (mm) | 44.00 |
| Flute Length (Decimal Inch) | 10.7087 |
| Flute By Diameter Ratio | 25xD |
| Maximum Drilling Depth (Decimal Inch) | 9.8425 |
| Maximum Drilling Depth (mm) | 250.00 |
| Material Grade | Fine Grain |
| Specification Designation | DIN |
