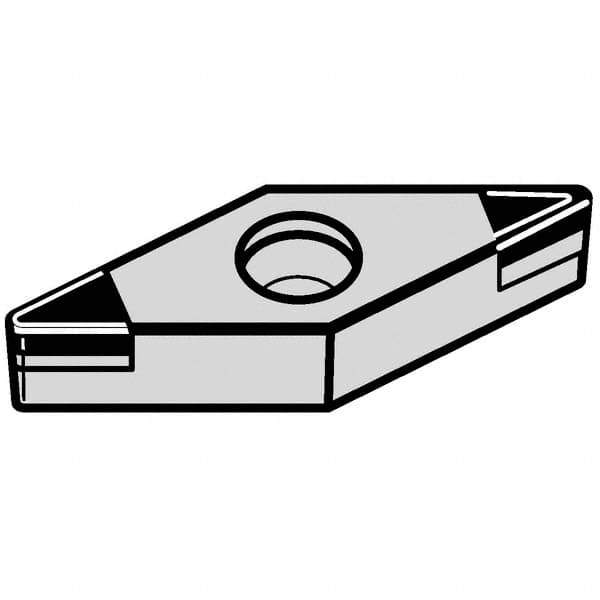

Kennametal - VBGW221 MT Grade KBH20 PCBN Turning Insert - Nano-Composite Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 42695239
Brand: Kennametal
Model #: 5330162
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VBGW |
| Insert Size | 221 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KBH20 |
| Coating | Nano-Composite |
| Chip Breaker | MT |
| Insert Length (Decimal Inch) | 0.4360 |
| ISO Number | VBGW110304S01225MT |
| Relief Angle | 5 |
| Primary Workpiece Material | H |
| Secondary Workpiece Material | None |
| Included Angle | 35 |
| Series | Screw-On |
| Insert Holding Method | Screw |
| Shape | Diamond |
