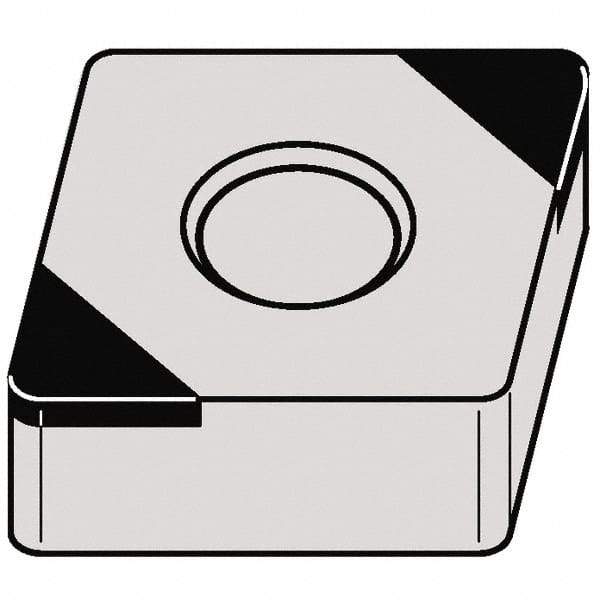

Kennametal - CNGA432 EMT Grade KB5610 PCBN Turning Insert - TiAlN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 42691139
Brand: Kennametal
Model #: 5111785
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGA |
| Insert Size | 432 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KB5610 |
| Coating | TiAlN |
| Material Grade | C4/C8 |
| Chip Breaker | EMT |
| Insert Length (Decimal Inch) | 0.5080 |
| ISO Number | CNGA120408EMT |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | H |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
