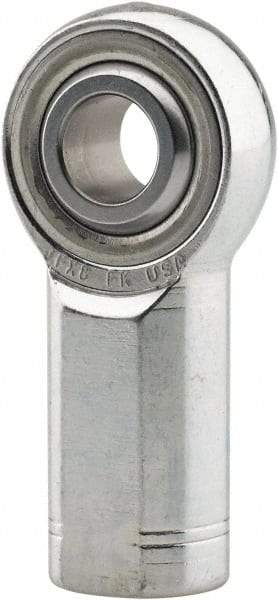

Made in USA - 3/16" ID, 5/8" Max OD, 3,736 Lb Max Static Cap, Plain Female Spherical Rod End - 10-32 LH, 0.469" Shank Diam, 9/16" Shank Length, Alloy Steel with Steel Raceway
Item #: 42307868
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.1875 |
| Inside Diameter (Inch) | 3/16 |
| Style | Plain Female Rod End |
| Maximum Outside Diameter (Decimal Inch) | 0.6250 |
| Maximum Outside Diameter (Inch) | 5/8 |
| Maximum Static Load Capacity (Pounds) | 3736.0 |
| Width (Inch) | 5/16 |
| Width (Decimal Inch) | 0.3125 |
| Thread Size | 10-32 |
| Material | Alloy Steel |
| Shank Diameter (Decimal Inch) | 0.4690 |
| Raceway Material | Steel |
| Shank Length (Decimal Inch) | 0.5620 |
| Thread Direction | Left Hand |
