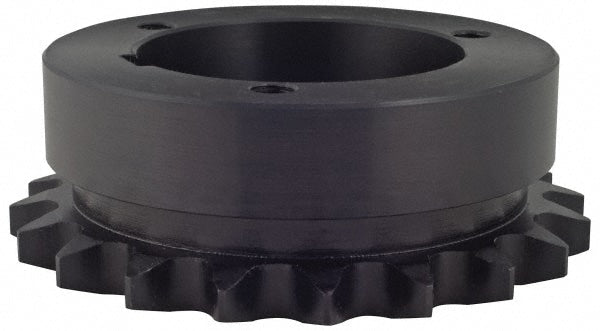

Bushed Roller Chain Sprocket: 25 Teeth, 5/8" Pitch, 2-11/16" Bore Dia
Item #: 84368646
Brand: Browning
Model #: 1177567
Product Specifications
| Sprocket Type | Bushed Roller Chain |
| Chain Pitch (Decimal Inch) | 0.6250 |
| Chain Pitch (Inch) | 5/8 |
| Iso Number | 10B-1 |
| Chain Trade Size | 50 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 5.3200 |
| Material | Steel |
| Bushing Series | Q |
| Maximum Bore Diameter (Inch) | 2-11/16 |
| Minimum Bore Diameter (Inch) | 3/4 |
| Minimum Bore Diameter (Decimal Inch) | 2.6875 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3430 |
| Number Of Teeth | 25 |
| Product Service Code | 3020 |
| UNSPSC Code | 31171900 |
| Country of Origin | China |
