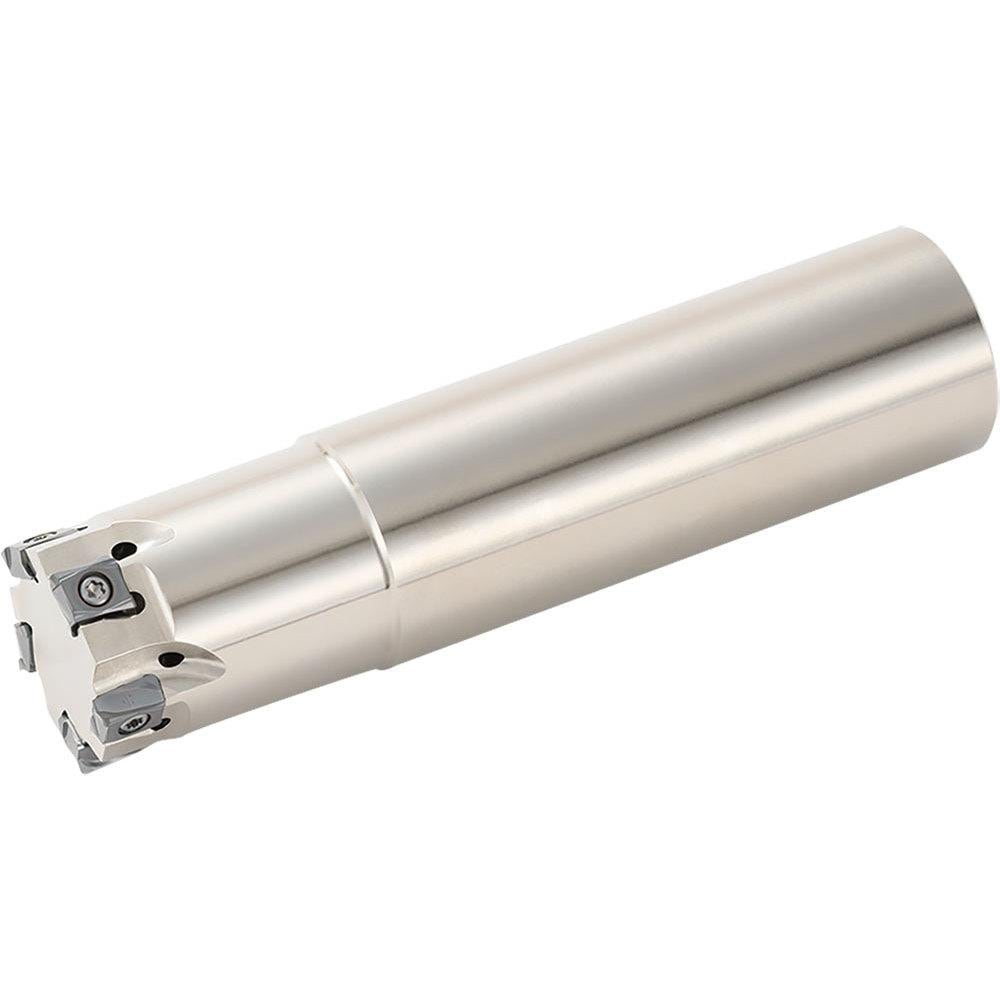

Indexable Square-Shoulder End Mill: MA9032S3212T3C, 0.4724'' Max Depth of Cut, 1.2598'' Shank Dia, Cylindrical Shank
Item #: 68873124
Brand: Kyocera
Model #: THN08735
Product Specifications
| Cutting Diameter | 1.2598 |
| Overall Length (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutter Style | Facing; Plunging; Ramping; Shouldering; Slotting; Helical Milling |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Maximum Ramping Angle | 1.50 |
| Tool Material | Steel |
| Series | MA90 Tangential Milling |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 5.1181 |
| Head Length (mm) | 40.00 |
| Maximum RPM | 16300.000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting; Helical |
| Tool Performance | High-Performance |
| Standards | GR99 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | LOGU1206?-GM, LOGU1206?-SM, LOGU1206?-GH |
| Insert Compatibility | LOGU1206?-GM, LOGU1206?-SM, LOGU1206?-GH |
| Hand of Holder | Right Hand |
| Rake Angle | (Radial); (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 23242106 |
| ISO Number | MA90-32S32-12T3C |
| Manufacturers Catalog Number | MA9032S3212T3C |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Cutting Diameter | 1.2598 |
| Overall Length (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutter Style | Facing; Plunging; Ramping; Shouldering; Slotting; Helical Milling |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Maximum Ramping Angle | 1.50 |
| Tool Material | Steel |
| Series | MA90 Tangential Milling |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 5.1181 |
| Head Length (mm) | 40.00 |
| Maximum RPM | 16300.000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting; Helical |
| Tool Performance | High-Performance |
| Standards | GR99 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | LOGU1206?-GM, LOGU1206?-SM, LOGU1206?-GH |
| Insert Compatibility | LOGU1206?-GM, LOGU1206?-SM, LOGU1206?-GH |
| Hand of Holder | Right Hand |
| Rake Angle | (Radial); (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 23242106 |
| ISO Number | MA90-32S32-12T3C |
| Manufacturers Catalog Number | MA9032S3212T3C |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| MSC Part # | 68873124 |
| Mfr Part # | THN08735 |
| Country of Origin Country of Origin is subject to change | China |
