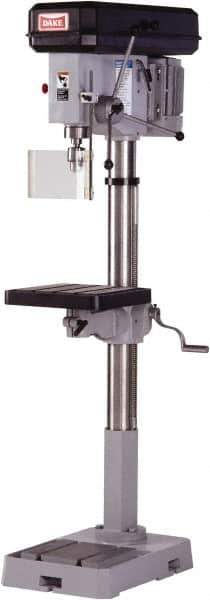

Dake - 14-1/8" Swing, Step Pulley Drill Press - 9 Speed, 1/2 hp, Single Phase
Item #: 41732025
Brand: Dake
Model #: 977200
Exact Tooling IR#: 04
Features and Benefits
Floor drill presses, also known as standing drill presses, offer more power options than bench drill presses. They are most suited for heavy-duty operations.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Step pulleys are driven by a belt system that is manually changed to achieve a range of fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Stand Type | Floor |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 14-1/8 |
| Spindle Speed Control | Step Pulley |
| Phase | 1 |
| Spindle Taper Size | 2MT |
| Spindle Travel Length (Inch) | 3-1/8 |
| Horsepower (HP) | 0.5 |
| Voltage | 110 |
| Minimum Spindle Speed (RPM) | 240 |
| Maximum Spindle Speed (RPM) | 240/3400 |
| Drilling Capacity in Steel (Inch) | 5/8 |
| Number of Spindle Speeds | 9 |
| Spindle to Table Distance (Inch) | 28-1/2 |
| Spindle to Column Distance (Inch) | 7-1/16 |
| Column Diameter (Inch) | 3-1/8 |
| Overall Height (Inch) | 64 |
