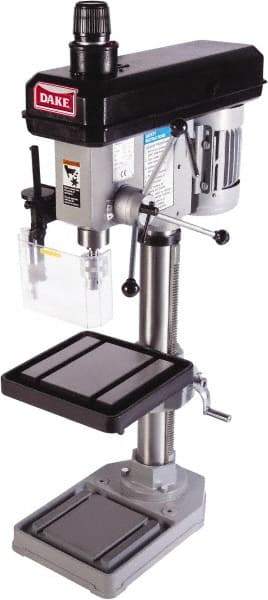

Dake - 18" Swing, Variable Speed Pulley Drill Press - Variable Speed, 1/2 hp, Single Phase
Item #: 41731977
Brand: Dake
Model #: 977102
Exact Tooling IR#: 04
Features and Benefits
Bench drill presses, also known as bench top, are stationary presses that are mounted to a workbench. They are used for precision applications, on smaller workpieces and where limited space is a concern.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Stand Type | Bench |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 18 |
| Spindle Speed Control | Variable Speed Pulley |
| Phase | 1 |
| Spindle Taper Size | 2MT |
| Spindle Travel Length (Inch) | 3-1/8 |
| Horsepower (HP) | 0.5 |
| Voltage | 110 |
| Maximum Spindle Speed (RPM) | 545/4000 |
| Drilling Capacity in Steel (Inch) | 5/8 |
| Number of Spindle Speeds | variable |
| Column Diameter (Inch) | 3-1/8 |
| Overall Height (Inch) | 42-1/2 |
