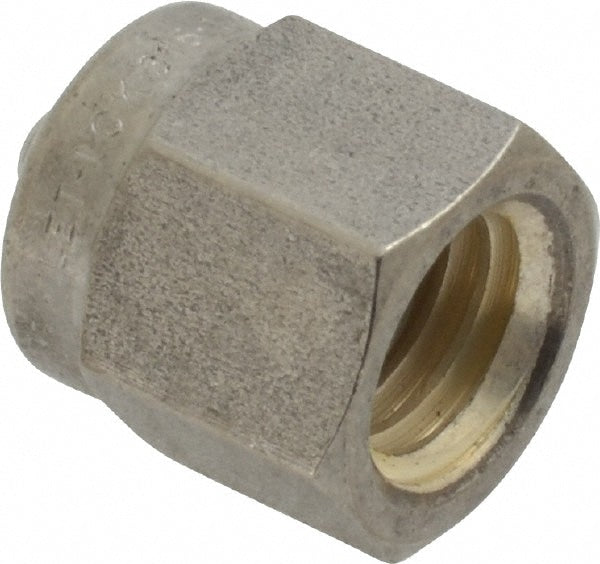

Compression Tube Plug: 5/16-20, 1/8" Tube OD, Compression
Item #: 98312010
Brand: Value Collection
Model #: SS-TP-FT2
Product Specifications
| Fitting Type | Plug |
| Material | Stainless Steel |
| End Connections | Compression |
| Thread Size (Inch) | 5/16-20 |
| Thread Standard | UNF |
| Tube Outside Diameter | 1/8 |
| Overall Length (Decimal Inch) | 0.4402 |
| Overall Length (mm) | 11.18 |
| Standards | ASTM A276; ASTM A479; ASTM A269; ASTM A213; ASTM A182; DIN EN10122-5; DIN EN10272 |
| Material Grade | 316 |
| Swagelok Part Number | SS-200-P |
| Product Service Code | 4720 |
| UNSPSC Code | 27121700 |
| Country of Origin | China |
