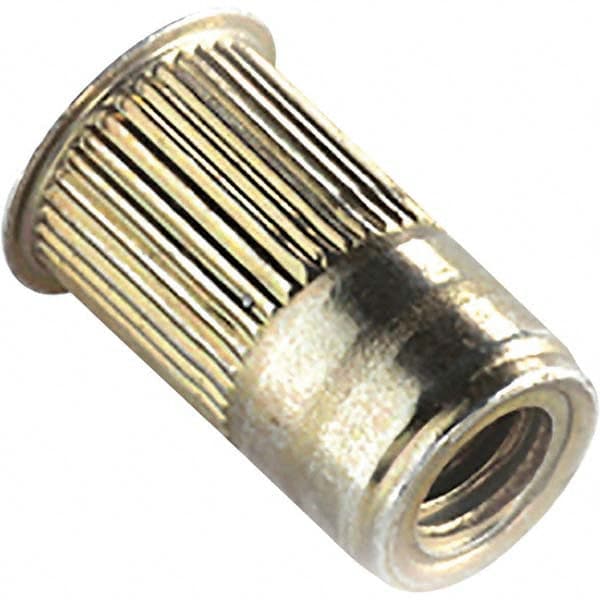

Press Fit Threaded Inserts; Product Type: Flanged; For Material Type: Metal; Material: Steel; System of Measurement: Inch; Overall Length (Decimal Inch): 0.4200; Thread Size: #8-32; Insert Diameter (Decimal Inch): 0.2650; Hole Diameter (Decimal Inch): 0.2
Item #: 47160585
Brand: Made in USA
Model #: AKS4T-832-80
Product Specifications
| Product Type | Flanged |
| Material | Steel |
| Thread Size | #8-32 |
| Overall Length (Decimal Inch) | 0.4200 |
| Insert Diameter (Decimal Inch) | 0.2650 |
| Hole Diameter (Decimal Inch) | 0.2656 in |
| Insert Diameter | 0.265 in |
| For Use On | Metal |
| Overall Length | 0.42 in |
| Head Diameter (Decimal Inch) | 0.39 |
| Head Height (Decimal Inch) | 0.03 in |
| Drill Size (Inch) | 17/64 |
| Thread Standard | UNC |
| UNSPSC Code | 31162802 |
