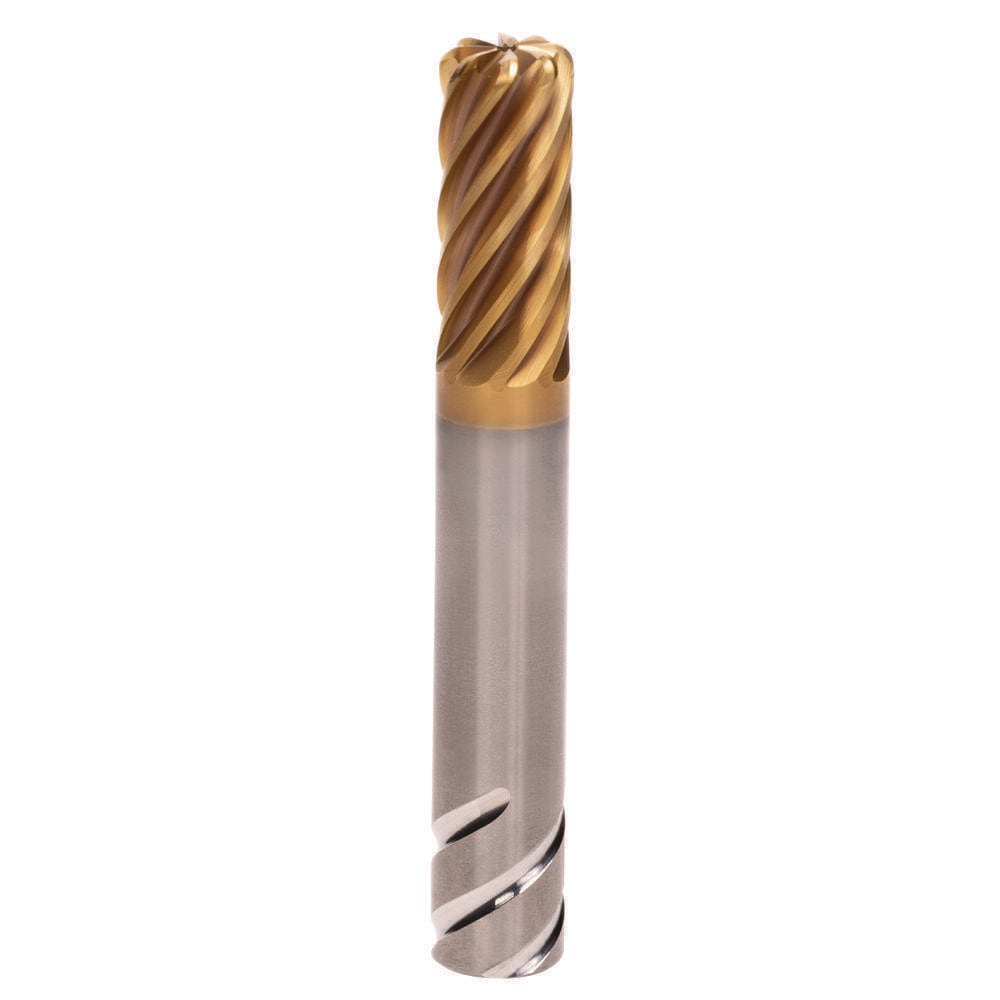

Corner Radius End Mill: 25 mm Dia, 45.00 mm LOC, 2.50 mm Radius, 8 Flute, Solid Carbide
Item #: 74083536
Brand: Kennametal
Model #: 7104240
Product Specifications
| Mill Diameter (Decimal Inch) | 0.9843 |
| Mill Diameter (mm) | 25.00 |
| Number Of Flutes | 8 |
| Length of Cut (mm) | 45.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlCrN |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2.50 |
| Overall Length (mm) | 121.00 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 4.7638 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.7717 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Safe-Lock |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
| UNSPSC Code | 27112803 |
| Series | HARVI IV |
| Manufacturers Catalog Number | HA4R8RA2500R045SLR250IM |
| Mill Diameter (Decimal Inch) | 0.9843 |
| Mill Diameter (mm) | 25.00 |
| Number Of Flutes | 8 |
| Length of Cut (mm) | 45.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlCrN |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 2.50 |
| Overall Length (mm) | 121.00 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 4.7638 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.7717 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Safe-Lock |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
| UNSPSC Code | 27112803 |
| Series | HARVI IV |
| Manufacturers Catalog Number | HA4R8RA2500R045SLR250IM |
| MSC Part # | 74083536 |
| Mfr Part # | 7104240 |
| Country of Origin Country of Origin is subject to change | Israel |
