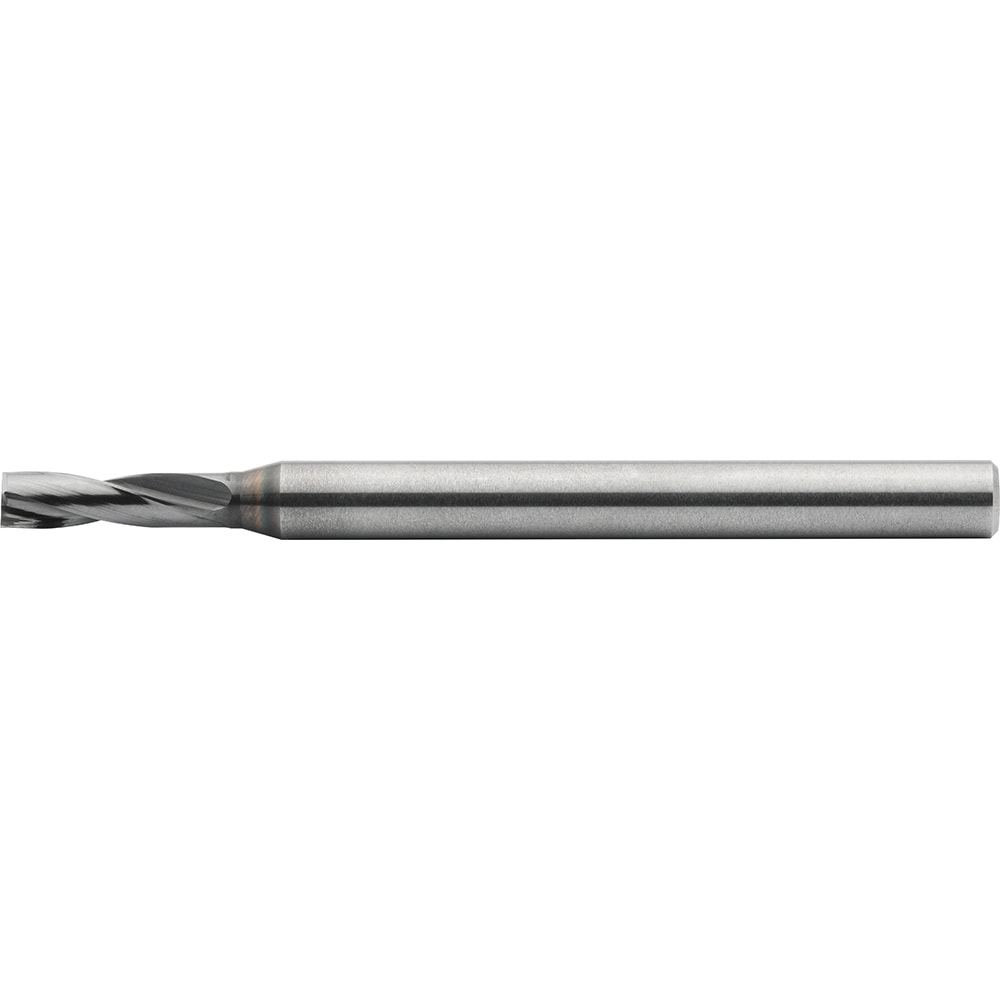

Micro Drill Bit: 2.30 mm Dia, (0.0906"), 180 deg, Solid Carbide
Item #: 67881243
Brand: Mitsubishi
Model #: 10592441
Product Specifications
| Drill Bit Size (mm) | 2.30 |
| Drill Bit Size (Decimal Inch) | 0.0906 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.3622 |
| Flute Length (mm) | 9.20 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 180 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 4.60 |
| Maximum Drilling Depth (Decimal Inch) | 0.1811 |
| Number Of Flutes | 2 |
| Series | MFE |
| Overall Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 50.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling; Blind Hole |
| Web Thinning | X-Thinned |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Aluminum; Cast Iron; Brass; Carbon Steel; Superalloys & Titanium; Aluminum Alloy; Steel; Copper; Hardened Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Shank Length (Decimal Inch) | 1.4606 |
| Shank Length (mm) | 37.10 |
| Flute By Diameter Ratio | 2xD |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 2.30 |
| Drill Bit Size (Decimal Inch) | 0.0906 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.3622 |
| Flute Length (mm) | 9.20 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 180 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 4.60 |
| Maximum Drilling Depth (Decimal Inch) | 0.1811 |
| Number Of Flutes | 2 |
| Series | MFE |
| Overall Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 50.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling; Blind Hole |
| Web Thinning | X-Thinned |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Aluminum; Cast Iron; Brass; Carbon Steel; Superalloys & Titanium; Aluminum Alloy; Steel; Copper; Hardened Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Shank Length (Decimal Inch) | 1.4606 |
| Shank Length (mm) | 37.10 |
| Flute By Diameter Ratio | 2xD |
| UNSPSC Code | 23241600 |
| MSC Part # | 67881243 |
| Mfr Part # | 10592441 |
| Country of Origin Country of Origin is subject to change | Japan |
